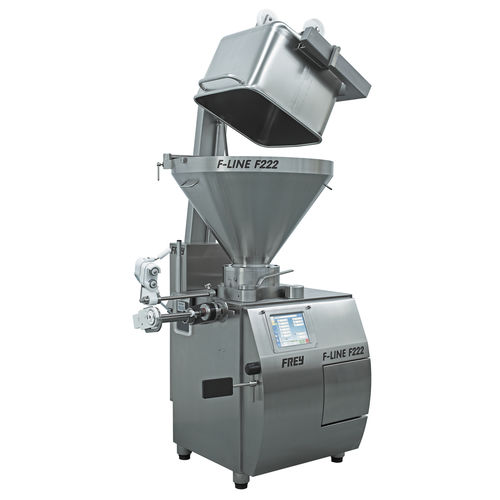

Fully electronic continual vacuum stuffer for STRAIGHTFILLING, PORTIONING and LINKING with detachable linking gear ADG04 and GLOBAL DRIVE.
This machine is fitted with an additional stirrer drive.
filling power up to 6.200 kg/h
filling pressure 60 bar
(inner and outer) machine housing and hopper made completely of stainless steel
filling hopper 250 litres
electronically locked step
integrated vacuum system and water separator
vacuum pump 21 m³/hour
total connected load 15,5 kW
400 volts, 50 Hz
including accessories and accessories holder
FREY Touch Control TC 733
Industrial-PC control
12 inch TFT colour display (800 x 600 pixels)
intuitively operatable by touching the display
operating self-explanatory
CAN bus system for high speed communication with attachments
Ethernet interface
USB interface
table of contents showing the product name in the program
portioning range 5 - 100.000 g (5 - 999 g in 0,1 g steps)
portioning speed max. 1000 portions/min.
speed and length of portioning pauses infinitely adjustable
counter of passage quantity, piece counter, automatic stop control
flow-reverse mechanism and adjustable 1st portion weight
error indicator
memory for 200 filling programs
incl. programs for cooked sausages
electronic pulse control for clipping machines
