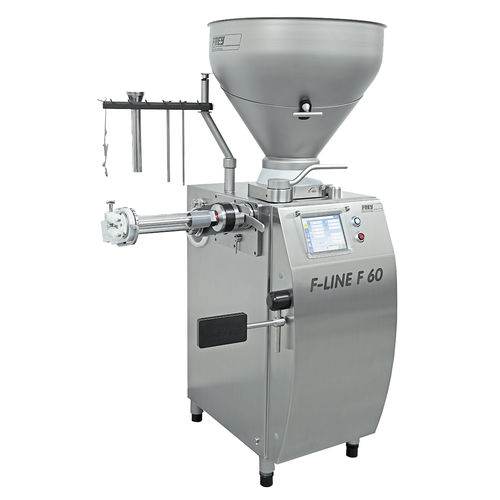

Continuous vacuum filler F-Line F60 series

servo-drivenfor sausages

Fully electronic, continuous vacuum stuffer for STRAIGHT FILLING, PORTIONING and LINKING with removable ADG04 linking gear and FREY SERVO DRIVE. • Filling capacity up to approx. 2,900 kg/h • Filling pressure approx. 40 bar • Machine housing and hopper made entirely of stainless steel • Divisible hopper approx. 25/90 liters • Portioning range 5 - 100,000 g (5 - 999 g in 0.1 g increments) • Portioning speed max. 530 portions/min. • Speed and pause lengths are infinitely variable • Flow measurement, piece counter, count-based auto stop • Flow-reverse mechanism and adjustable 1st portion weight • Memory for 200 filling programs • Electronic pulse control for clipping machines • Digitally-controlled vacuum system • Vacuum pump 16m³ • TC266 industrial PC control • 8.4" TFT color display (800x600) • Touch operation, Motion control • Self-explanatory operation • CAN bus for high-speed communication • With attachments, Ethernet interface, USB interface • Total connected load: max. 4.8 KW • Rotary current 400 Volt, 50 Hz • Standard accessories incl. accessory holder The machine can also be factory-fitted with the Liftmax lift and tilt device for 120-liter standard feed trolleys.
