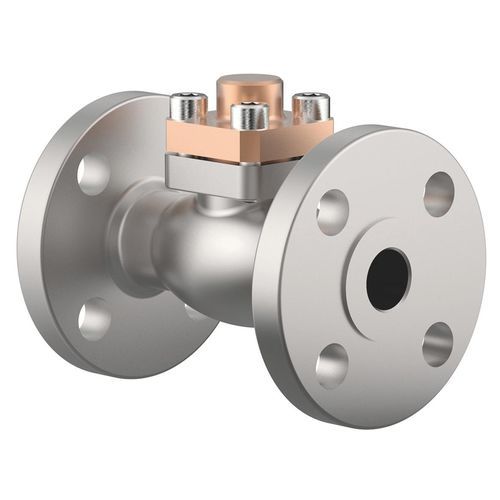

Cryogenic check valve 05418discfor oxygendouble-flange
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Fluid
- for oxygen
- Body
- double-flange
- Material
- stainless steel
- Other characteristics
- spring, cryogenic
- DN
Max.: 150 mm
(5.906 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 20 bar
(290.1 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: -196 °C
(-321 °F)- Flow rate
Max.: 350 m³/h
(12,360.13 ft³/h)Min.: 4.3 m³/h
(151.85 ft³/h)
Description
The 05418 series from Herose is a cyrogenic-check valve that is equipped with a bronze cap and body made from stainless steel material. Designed with a spring in the structure, it has opening pressure at ca. 0.1 bar. This unit is guaranteed to deliver quality oxygen service with its degreased and cleaned body.
