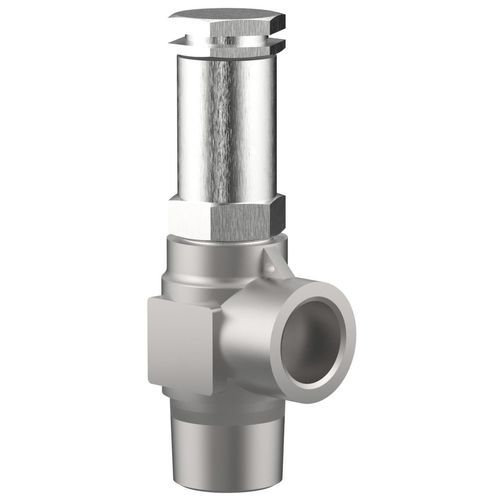

Cryogenic safety valve 06011for airfor gasfor pipelines
Add to favorites
Compare this product
Characteristics
- Fluid
- for air, for gas
- Applications
- for pipelines
- Body material
- stainless steel
- Valve plug seal material
- PTFE
- Other characteristics
- threaded, cryogenic, right-angle
- Controlled pressure
Max.: 55 bar
(797.7 psi)Min.: 5 bar
(72.5 psi)- DN
0.13 in, 0.38 in, 0.5 in
- Flow rate
Max.: 111.6 m³/h
(3,941.12 ft³/h)Min.: 11.3 m³/h
(399.06 ft³/h)- Weight
180 g, 195 g, 210 g
(6.35 oz, 6.88 oz, 7.41 oz)
Description
Cryogenic Safety Valves Type 06011 is made with stainless steel. It is provided as a safety device for protection against thermal expansion in pipework and parts of facilities. The item is designed for the applications for air gases, vapors and cryogenic liquefied gases including LNG. The working temperature ranges from -196°C up to +65°C.
