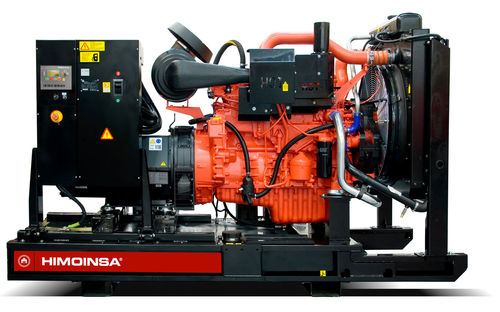

Diesel generator set HSW-305 T5

three-phasestationary50 Hz

This SCANIA diesel engine runs on a 4 strokes-cycle with a direct injection type. Model DC9 71A (02-03) has a turbocharged and aftercooled aspiration, 5-L cylinders and a rated output of 261 kW prp. It works on a coolant system with a displacement of 9.3 L. The bore and stroke sizes are 130 x 140 mm. The engine uses lube oil ACEA E3, E4, E5 or E7. The total oil capacity is 38 L. The fuel consumption at 50%, 75% and 100% PRP is 33.69 l/h, 49.83 l/h and 63.65 l/h respectively. The water cooled diesel engine has a 24V electrical system, an electric governor, a dry air cleaner, a low water level sensor, hot components and radiator guards, and mobile components guards.
