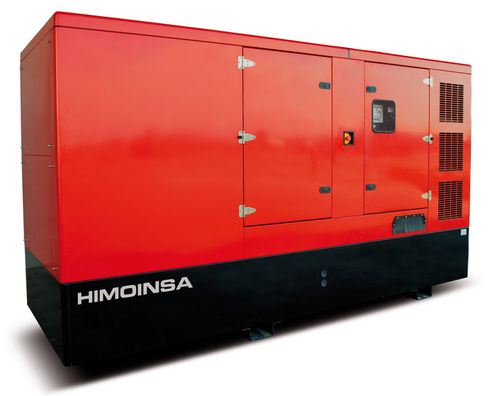

Diesel generator set HSW-290 T6

three-phase60 Hzdirect fuel injection

SCANIA engine of the DC9 72A (02-13) model have a rated output of 282 kW PRR, with 311 kW standby. The engine is diesel, 4 strokes-cycle, with direct injection and turbocharged and aftercooled aspiration. Bore and Stroke are 130 x 140 mm, with the displacement of 9,3 L. The compression ratio is 16:1 with the consumption ranging from 34,12 l/h to 76,14 l/h. Total oil capacity is 38 L. It contains a dry air filter and a 24 V electrical system. The diameter of the inner exhaust pipe is 90 mm. The engine contains guards for all radiatiors, hot and mobile components.
