LED panel light Rayla 80

Product description

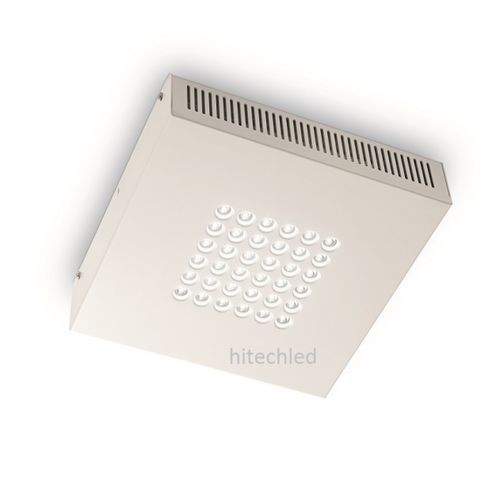

Rayla 80 is a surface-mounted LED luminaire designed for industrial and outdoor applications. Its 80 W power and symmetrical 90° optics concentrate the light beam for uniform illumination while the recessed LED arrangement and metal parabolic reflectors reduce glare. Cataphoresis surface treatment and integrated surge protection enhance durability and reduce maintenance needs.

Technical data
Power: 80 W
Luminous flux: 8950 lm
CCT: 4000 K / 5700 K
CRI: 75 / 83
Optics: Symmetrical 90°
Protection: IP66
Light source: 36 LEDs by Nichia
Dimensions: 360 x 360 mm
Supply voltage: 90–304 VAC 50/60 Hz
Median useful life L70: 80,000 h
Ambient temperature range: -40 to +60 °C
Storage temperature range: -40 to +70 °C
Storage humidity range: 0–95% RH
Weight: 6.3 kg
Surface treatment: Cataphoresis
Color: White
Warranty: 5 Years

Features / Technical specifications

• Power: 80 W
• Luminous flux: 8950 lm
• CCT: 4000 K / 5700 K
• CRI: 75 / 83
• Optics: Symmetrical 90°
• Protection: IP66
• Light source: 36 LEDs by Nichia
• Dimensions: 360 x 360 mm
• Supply voltage: 90–304 VAC 50/60 Hz
• Median useful life L70: 80,000 h
• Ambient temperature range: -40 to +60 °C
• Storage temperature range: -40 to +70 °C
• Storage humidity range: 0–95% RH
• Weight: 6.3 kg
• Surface treatment: Cataphoresis
• Color: White
• Warranty: 5 Years
