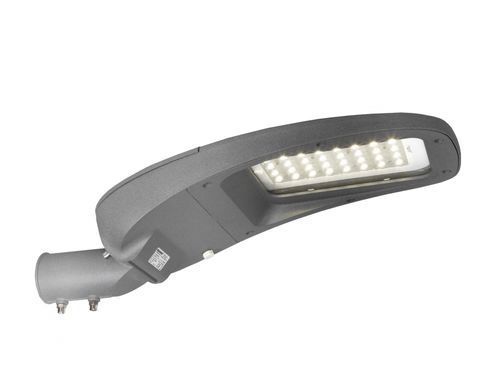

LED street light ERANA 70 series

electricIP66

Product overview
Lighting of pedestrian crossings requires a product that meets safety standards and is designed not only to illuminate the crossing but to make the pedestrian highly visible. ERANA 70 is designed for this function. For correct installation follow recommended rules: pole mounting, positioning on the left side of the crossing and alternating with the opposite side of the road, as illustrated on the technical sheet.

Technical information
Power: 70 W
Luminous flux: 7570 lm
CCT: 4000 K / 5700 K
CRI: 75 / 83
Optics: Asymmetrical
Protection: IP66
Light source: 30 Nichia LEDs
Dimensions: 616×186 mm
Supply voltage: 100 – 240 VAC 50/60 Hz
Median useful life (L70): 80,000 h
Ambient temperature range: -40 to +60 °C
Storage temperature range: -40 to +70 °C
Storage humidity range: 0–95% Rh
Weight: 5.5 kg
Color: Grey
Warranty: 5 years

Features / Technical specifications

• Designed to illuminate pedestrian crossings
• Power: 70 W
• Luminous flux: 7570 lm
• CCT: 4000 K / 5700 K
• CRI: 75 / 83
• Optics: Asymmetrical
• Protection rating: IP66
• Light source: 30 Nichia LEDs
• Dimensions: 616×186 mm
• Supply voltage: 100 – 240 VAC 50/60 Hz
• Median useful life (L70): 80,000 h
• Ambient temperature: -40 to +60 °C
• Storage temperature: -40 to +70 °C
• Storage humidity: 0–95% Rh
• Weight: 5.5 kg
• Color: Grey
• Photobiological risk: Exempt group
