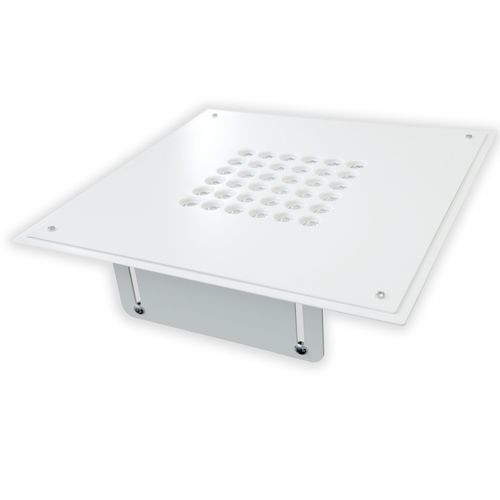

LED panel light OKLA 80

Product description
Okla 80 is designed to illuminate petrol stations safely and comfortably. Its 90° symmetrical optic concentrates the beam for uniform canopy lighting. Rear-set LEDs combined with metal-formed reflectors minimize glare. Cataphoresis-treated frame and an integrated surge protection device (Surge) enhance durability and reduce maintenance costs.

Technical data (table)
Power: 80 W
Luminous flux: 8950 lm
CCT: 4000 K / 5700 K
CRI: 75/83
Optics: Symmetrical 90°
Protection: IP66
Light source: 36 LEDs by Nichia
Dimensions: 400×400 mm
Supply voltage: 90 – 304 VAC 50/60 Hz
Median useful life at L70: 80,000 h
Ambient temperature range: -40 to +60 °C
Storage temperature range: -40 to +70 °C
Storage humidity range: 0–95% Rh
Weight: 5.4 kg
Surface treatment: Cataphoresis
Color: White
Integrated surge protection: Yes (Surge)
Photobiological risk (EN62471): Exempt group

Features / technical specifications

• Power: 80 W
• Luminous flux: 8950 lm
• CCT: 4000 K / 5700 K
• CRI: 75/83
• Optics: Symmetrical 90°
• Protection: IP66
• Light source: 36 LEDs by Nichia
• Dimensions: 400×400 mm
• Supply voltage: 90 – 304 VAC 50/60 Hz
• Median useful life at L70: 80,000 h
• Ambient temperature range: -40 to +60 °C
• Storage temperature range: -40 to +70 °C
• Storage humidity range: 0–95% Rh
• Weight: 5.4 kg
• Surface treatment: Cataphoresis
• Color: White
• Integrated surge protection: Yes (Surge)
• Photobiological risk (EN62471): Exempt group
