LED street light KANDA 80

electricIP66aluminium

Product overview

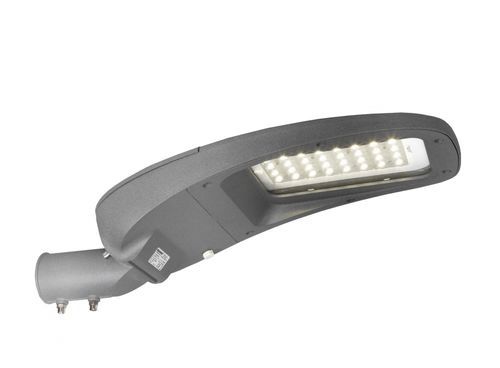

The KANDA 80 is an urban LED street luminaire designed to provide the required luminous flux and distribution for streets, parking areas, squares and other outdoor public spaces that need reliable, application-tailored lighting.

Benefits

• Mounting on straight or curved pole; variable inclination on rack.
• High-efficiency Nichia LEDs with low luminous decay.
• Compact die-cast aluminium housing with tempered glass.
• Quick and secure installation with steel screws and lock nuts.
• Surge protection integrated.
• Pole adapter available as an option.
• Asymmetrical optics for controlled light distribution.

Technical Table
Power: 80 W
Luminous flux: 9420 lm
CCT: 4000 K - 5700 K
CRI: 75 / 83
Optics: Asymmetrical
Ingress protection: IP66
Light source: 30 Nichia LEDs
Dimensions: 616 × 186 mm
Supply voltage: 100 – 240 VAC 50/60 Hz
Median useful life (L70): 80,000 h
Operating ambient temperature: -40 °C to +60 °C
Storage temperature: -40 °C to +70 °C
Storage humidity: 0–95% RH
Weight: 5.5 kg
Colour: Grey
Warranty: 5 years

Characteristics / Technical specifications

• Power: 80 W
• Luminous flux: 9420 lm
• CCT available: 4000 K and 5700 K
• CRI: 75 or 83
• Optics: Asymmetrical
• Protection rating: IP66
• Light source: 30 Nichia LEDs
• Dimensions: 616 × 186 mm
• Supply voltage: 100–240 VAC, 50/60 Hz
• Median useful life (L70): 80,000 h
• Operating temperature: -40 °C to +60 °C
• Storage temperature: -40 °C to +70 °C
• Storage humidity: 0–95% RH
• Weight: 5.5 kg
• Colour: Grey
• Warranty: 5 years
