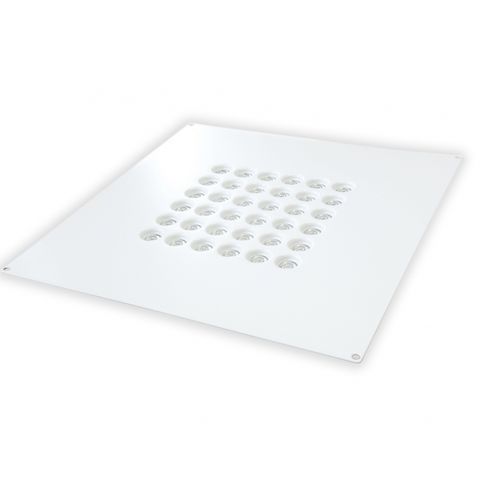

Light fixture VANYA 80-R4

LEDoutdoorIP66

Product overview
VANYA 80 R4 RETROFIT renews and improves the efficiency of service-station lighting with minimal installation time and reduced operating costs. It adapts to the existing Phs mini 300 frame to provide safe, comfortable and homogeneous illumination. The luminaire delivers a focused symmetrical 90° optical distribution. Rearward LED placement combined with metal parabolas in the front frame reduces glare. The frame is treated with cataphoresis anti-corrosion coating and the luminaire includes an integrated surge protection device (Surge), extending service life and lowering maintenance costs.

Highlights

• RETROFIT solution compatible with Phs mini 300 frame
• Symmetrical 90° optics for focused, uniform illumination
• Rear LED positioning and metal parabolas to minimize glare
• Cataphoresis anti-corrosion surface treatment
• Integrated surge protection device (Surge)

Technical table
Power: 80 W
Luminous flux: 8950 lm
CCT: 4000 K / 5700 K
CRI: 75 / 83
Optics: Symmetrical 90°
Protection: IP66
Light source: 36 Nichia LEDs
Dimensions: 335 × 335 mm
Supply voltage: 90–304 VAC 50/60 Hz
Median useful life (L70): 80,000 h
Ambient temperature range: -40 to +60 °C
Storage temperature range: -40 to +70 °C
Storage humidity range: 0–95% Rh
Weight: 4.5 Kg
Surface treatment: Cataphoresis
Color: White
Warranty: 5 Years

Applications and advantages

• Upgrade canopy lighting of service stations via retrofit, reusing existing frames
• Reduced maintenance and lifecycle costs thanks to corrosion protection and integrated surge protection
• Optimised 90° optics and LED placement ensure uniform, non-dazzling illumination
• Suitable for harsh outdoor conditions and wide temperature range (IP66)

Characteristics / technical specifications

• Application: RETROFIT solution for service-station lighting (compatible with Phs mini 300 frame)
• Rated power: 80 W
• Luminous flux: 8950 lm
• Colour temperature: 4000 K or 5700 K
• CRI: 75 / 83
• Optics: Symmetrical 90°
• Ingress protection: IP66
• LEDs: 36 × Nichia
• Dimensions: 335 × 335 mm
• Supply voltage: 90–304 VAC 50/60 Hz
• Median useful life (L70): 80,000 h
• Operating temperature: -40 to +60 °C
• Storage temperature: -40 to +70 °C
• Storage humidity: 0–95% Rh
• Weight: 4.5 Kg
• Surface treatment: Cataphoresis (anti-corrosion)
• Colour: White
• Photobiological risk: Exempt (EN 62471)
