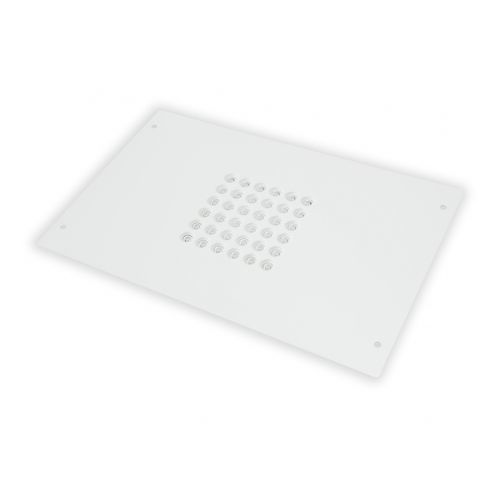

Light fixture VANYA 80-R3

LEDoutdoorIP66

Product overview
VANYA 80 R3 is a retrofit LED luminaire designed to renew and improve the efficiency of service-station lighting with minimal installation time and reduced operating costs. VANYA 80 R3 fits the existing SNP3 250W frame and provides focused, homogeneous illumination through symmetrical 90° optics. Rear-positioned LEDs combined with metal parabolas in the front frame reduce glare. Cataphoretic anti-corrosion frame coating and the integrated surge protection device (Surge) extend product life and lower maintenance costs.

Technical data (table)
Power: 80 W
Luminous flux: 8950 lm
CCT: 4000 K / 5700 K
CRI: CRI 75/83
Optics: Symmetrical 90°
Protection: IP66
Light source: 36 LEDs by Nichia
Dimensions: 566 x 355 mm
Supply voltage: 90–304 VAC 50/60 Hz
Median useful life L70: 80,000 h
Ambient temperature range: -40°C to +60°C
Storage temperature range: -40°C to +70°C
Storage humidity range: 0–95% RH
Weight: 5.2 kg
Surface treatment: Cataphoresis
Color: White
Warranty: 5 years
Photobiological risk EN 62471: Exempt group

Characteristics / Technical specifications

• Retrofit solution compatible with SNP3 250W frames for quick replacement and reduced installation time
• Symmetrical 90° optics for focused, homogeneous lighting of service stations
• Rear LED positioning and front metal parabolas to minimize glare
• Integrated surge protection device (Surge) for electrical protection
• Cataphoretic anti-corrosion frame coating for increased durability
• High-efficiency luminous flux: 8950 lm from 80 W
• Selectable CCT options: 4000 K and 5700 K
• Light source: 36 LEDs by Nichia
• Protection rating IP66 suitable for harsh environments
• Wide supply voltage range: 90–304 VAC (50/60 Hz)
• Long lifetime L70: 80,000 hours
• Operating temperature: -40°C to +60°C; storage: -40°C to +70°C
• Storage humidity: 0–95% RH
• Weight: 5.2 kg; dimensions: 566 x 355 mm
• 5-year warranty
