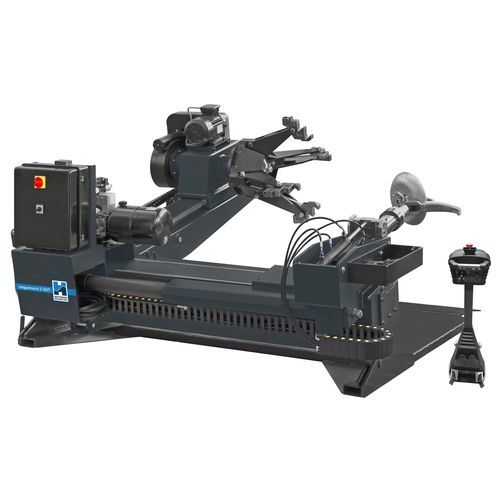

Truck tire changer MEGAMOUNT 2-60T

for busesfor tractorsfor industrial vehicles

Short description
Electro-hydraulic universal tyre changer for wheels of trucks, buses, tractors and earthmoving equipment. Clamping range without extensions: 14"–42"; expandable to 60" with extensions.

Description
Super-automatic electro-hydraulic tyre changer with synchronised movement of the clamping unit and tool unit, designed for fast, ergonomic operation on large-diameter wheels. The machine supports leverless tyre mounting thanks to tool fixation and features fully automatic lifting and rotation of the tool arm for reduced manual handling.

Model variant
MEGAMOUNT 2-60TR: Complete version with radio control.

Technical data
Clamping range: 14"–42" (60" with extensions)
Max. wheel diameter: 2700 mm (106")
Max. wheel width: 1500 mm (59")
Max. wheel weight: 2500 kg
Max. torque: 30,000 Nm
Speed of rotation: 4.5 – 9 rpm
Three-phase chuck power: 2.2 – 3 kW
Power supply: 400 V / 3 / 50–60 Hz
Net weight: 1550 kg

Technical specifications

• Type: Super-automatic electro-hydraulic tyre changer
• Application: Trucks, buses, tractors, earthmoving equipment
• Clamping range (standard / with extensions): 14"–42" / up to 60"
• Maximum wheel diameter: 2700 mm (106")
• Maximum wheel width: 1500 mm (59")
• Maximum wheel weight capacity: 2500 kg
• Maximum torque: 30,000 Nm
• Rotation speed: 4.5 – 9 rpm
• Chuck power (three-phase): 2.2 – 3 kW
• Power supply: 400 V / 3 phase / 50–60 Hz
• Net weight: 1550 kg
• Features: Leverless tyre mounting (tool fixation), fully automatic lifting and turning of tool arm, synchronised clamping and tool unit movement
