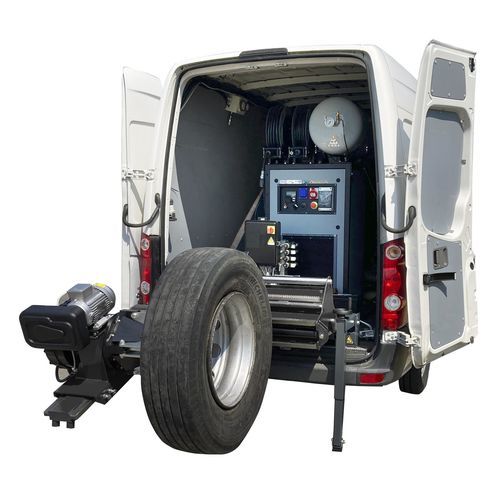

Truck tire changer MEGAMOUNT 2-26T2

automatichorizontalelectro-hydraulic

Short description
Electro-hydraulic mobile tyre changer for truck mobile service with right-hand chuck orientation; suitable for truck, bus and car wheels up to 30".

Description
TRUCK MOBILE SERVICE. Electro-hydraulic tyre changer engineered for mobile service operations, compatible with truck, bus and car wheels up to 30" diameter. ALWAYS TANGENTIAL working system: the roller and tool remain in optimal tangential position to avoid damage to tyre and rim.

Versions

• MEGAMOUNT 2-26T2: Complete version with data transmission via cable
• MEGAMOUNT 2-26T2 R: Complete version with radio control

Technical data (from table)
Clamping range: 13"–30"
Max. wheel diameter: 1380 mm (54")
Max. wheel width: 930 mm (37")
Max. wheel weight: 350 kg
Max. bead-breaking power: 19,500 N
Speed of rotation: 7 rpm (3ph - 1 speed)
Three-phase chuck: kW 400V - 50Hz (1 speed)
Power supply: 230V/3/50–60 Hz
Net weight: 530 kg

Features / Technical specifications

• Application: Truck mobile service; suitable for truck, bus and car wheels up to 30" diameter
• Working system: ALWAYS TANGENTIAL to protect tyre and rim
• Clamping range: 13"–30"
• Maximum wheel diameter: 1380 mm (54")
• Maximum wheel width: 930 mm (37")
• Maximum wheel weight: 350 kg
• Maximum bead-breaking power: 19,500 N
• Rotation speed: 7 rpm (3-phase, single speed)
• Three-phase chuck specification: kW 400V - 50Hz (1 speed)
• Power supply: 230V / 3 / 50–60 Hz
• Net weight: 530 kg
• Available controls: cable data transmission or radio control (R version)
