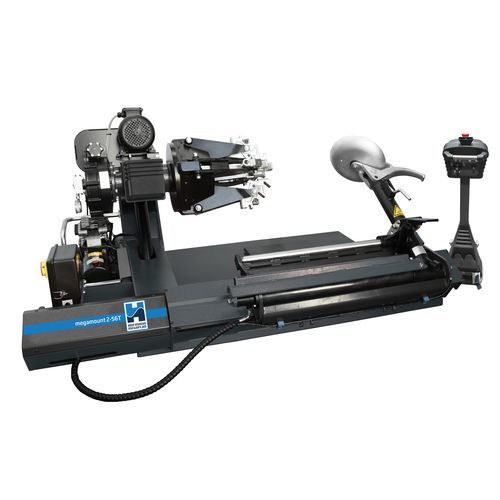

Truck tyre changer megamount 2-56T

for tractorsfor industrial vehiclesautomatic

Short description
Electro-hydraulic tyre changer designed for tubeless tyres on trucks, buses, tractors and earthmoving equipment. Clamping range without extensions is 14"–42", expandable up to 56" with extensions. Bead breaker unit travels automatically. Tool carriage is moved manually with a quick-release system; automatic tool movement is available on the MM2-56TA variant. Mobile low-voltage control unit for field deployment.

Variant

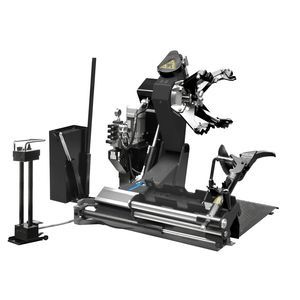

MEGAMOUNT 2-56TA: complete version with automatic tool movement.

Technical data (table)
Clamping range: 14"–42" (56" with extensions)
Max. wheel diameter: 2300 mm (91")
Max. wheel width: 1300 mm (52") (MM2-56TA) / 1150 mm (45") (MM2-56T)
Max. wheel weight: 2000 kg
Max. torque: 25,000 Nm
Rotation speed: 4.5–9 rpm
Three-phase chuck power: 2.2–3 kW (3–4 hp)
Power supply: 230 V / 3 ph / 50–60 Hz
Net weight: 905 kg (MM2-56TA), 855 kg

Specifications / features

• Electro-hydraulic operation
• Designed for tubeless tyres on trucks, buses, tractors and earthmoving equipment
• Clamping range (without extensions): 14"–42"; expandable to 56" with extensions
• Maximum wheel diameter: 2300 mm (91")
• Maximum wheel width: 1300 mm (52") (MM2-56TA) / 1150 mm (45") (MM2-56T)
• Maximum wheel weight: 2000 kg
• Maximum torque: 25,000 Nm
• Rotation speed: 4.5–9 rpm
• Three-phase chuck power: 2.2–3 kW (3–4 hp)
• Power supply: 230 V / 3 ph / 50–60 Hz
• Net weight: 905 kg (MM2-56TA), 855 kg
• Bead breaker unit travels automatically
• Tool movement: manual with quick-release system (automatic tool movement on MM2-56TA variant)

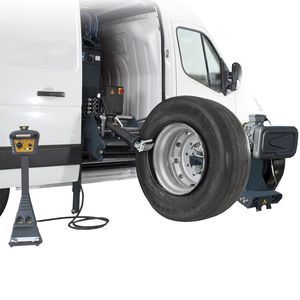

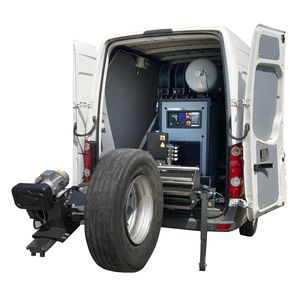

• Mobile control unit for field deployment
• Low-voltage control unit
