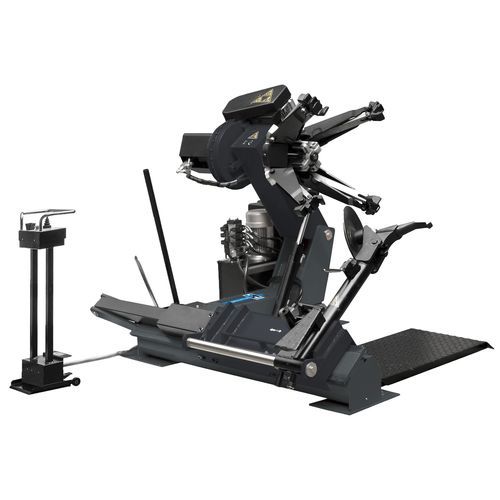

Truck tire changer megamount T46

for tractorsfor industrial vehiclessemi-automatic

Product short description
Semi-automatic electro-hydraulic tyre changer for tubeless tyres used on trucks, buses, tractors and earthmoving equipment. Suitable for wheels up to 46".

Description

• Electro-hydraulic tyre changer designed for tubeless tyres on heavy vehicles and construction machinery.
• Clamping range without extensions: 14" to 42"; expandable up to 56" with extensions.
• Hydraulic chuck with two rotation speeds and 5 rim-locking positions for adaptable clamping.
• Manual lifting and traversing of the tool-holder arm for precise bead work.
• Manual translational movement of the tool-holder carriage with two selectable working positions.
• Mobile control unit for positioning close to the working area; equipped with an anti-crush cable for operator safety.

Technical data
Clamping range: 14"–42" (56" with extensions)
Max. wheel diameter: 2300 mm (90.5")
Max. wheel width: 1065 mm (42")
Max. wheel weight: 1500 kg
Motor: 1.3 – 1.8 kW - 400V - 50Hz - 3ph
Net weight: 770 kg
Gross weight: 816 kg
Noise level: < 70 dB

Features / technical specifications

• Clamping range: 14"–42" (56" with extensions)
• Max. wheel diameter: 2300 mm (90.5")
• Max. wheel width: 1065 mm (42")
• Max. wheel weight: 1500 kg
• Motor: 1.3 – 1.8 kW - 400V - 50Hz - 3ph
• Net weight: 770 kg
• Gross weight: 816 kg
• Noise level: < 70 dB
• Hydraulic chuck with two rotation speeds and 5 rim locking positions
• Manual lifting and traversing of the tool-holder arm
• Manual translational movement of the tool-holder carriage with two working positions
• Mobile control unit with anti-crush cable
