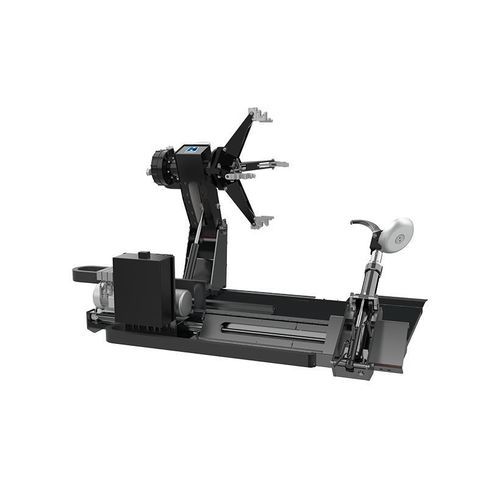

Truck tire changer megamount DUO

for busesfor tractorsfor industrial vehicles

Short description
Super-automatic tire changer for truck, bus, tractor and earthmoving tyres up to 60”. Designed for heavy-duty wheels with fast, precise automatic operations.

Overview
The main feature of megamount DUO is the double carriage system that provides independent translational movement for both the tool arm and the clamping unit, enabling faster and safer wheel positioning. Both translational movements operate at double speed. The tool arm is fully automatic (hydraulic lift and rotation) and its 100 mm diameter shaft — the largest in its category — increases stiffness and control during operations. The bead-breaker nail can be lowered fully to enlarge the bead-breaking area. The universal hydraulic 4-jaws chuck with four grooves clamps rims from 11” to 46” (extendable to 60” with optional extensions). The machine structure is reinforced to avoid bending under heavy loads, suitable for demanding workshop environments.

Available versions

• With cable controls
• With radio controls
• Konsole version with aerial controls

Technical table
Clamping range: 11”–46” (60” with extensions)
Max. wheel diameter: 2550 mm (100")
Max. wheel width: 1500 mm (59")
Max. wheel weight: 2300 kg
Max. torque: 30,000 Nm
Speed of rotation: 4.5 – 9 rpm
Three-phase chuck: 2.2 – 3 kW
Power supply: 400 V/3/50 Hz
Net weight: 1450 kg

Technical specifications

• Double carriage system for tool arm and clamping unit — double-speed translational movements
• Fully automatic hydraulic tool arm (lifting and rotation)
• Tool arm diameter: 100 mm
• Bead-breaker nail can be lowered completely to widen bead-breaking space
• Universal hydraulic 4-jaws chuck with 4 grooves
• Clamps rims 11” ÷ 46” (extendable to 60” with optional extensions)
• Max. wheel diameter: 2550 mm (100")
• Max. wheel width: 1500 mm (59")
• Max. wheel weight capacity: 2300 kg
• Max. torque: 30,000 Nm
• Rotation speed: 4.5 – 9 rpm
• Three-phase chuck power: 2.2 – 3 kW
• Power supply: 400 V / 3 ph / 50 Hz
• Net weight: 1450 kg
