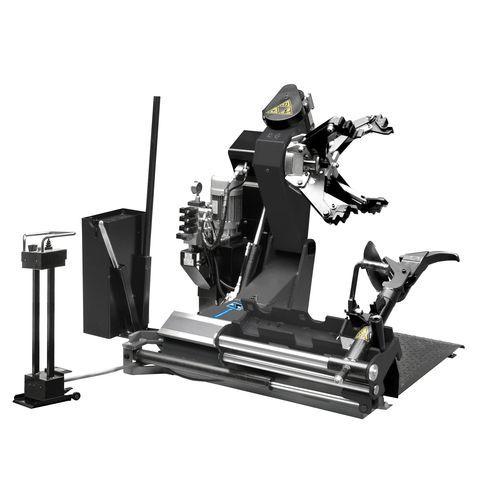

Truck tyre changer megamount T32

for tractorsfor industrial vehiclesautomatic

Short description

• Electro-hydraulic tyre changer for wheels of trucks, buses, tractors and earthmoving equipment with wheel up to 32″

Description

• Electro-hydraulic tyre changer for tubeless tires for trucks, buses, tractors and earthmoving equipment
• Clamping range is 13″ to 27″
• Two speed hydraulic chuck with 5 different rim locking positions
• Mobile control unit can be moved in the area of deployment. Anti-crush cable.

Technical data
Clamping range: 13″–27″
Max. wheel diameter: 1600 mm (63″)
Max. wheel width: 780 mm (3,5″)
Max. wheel weight: 1500 kg
Motor: 1.3 – 1.8 kW - 400V - 50Hz - 3ph
Gross weight: 630 kg
Net weight: 560 kg
Noise level: < 70 dB

Brochure
Brochure available in EN, DE, IT, FR, ES

Technical specifications

• Clamping range: 13″–27″
• Max. wheel diameter: 1600 mm (63″)
• Max. wheel width: 780 mm (3,5″)
• Max. wheel weight: 1500 kg
• Motor: 1.3 – 1.8 kW - 400V - 50Hz - 3ph
• Gross weight: 630 kg
• Net weight: 560 kg
• Noise level: < 70 dB
