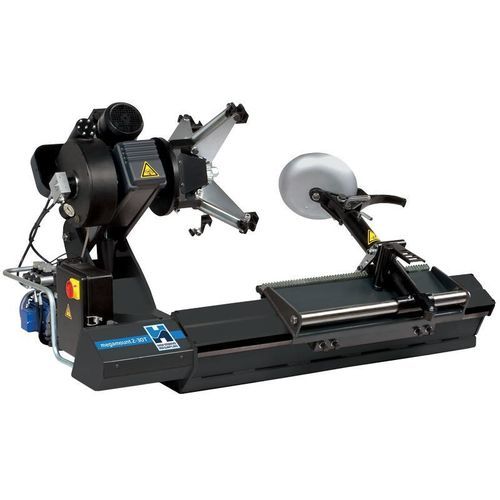

Truck tyre changer megamount 2-30T

semi-automatichorizontalelectro-hydraulic

Short description
Electro-hydraulic universal tyre changer for truck and bus wheels suitable for tubeless and tube-type tyres. Designed for intensive professional use with a self-centring chuck for grooved and split ring rims from 14" to 30".

Description
Universal electro-hydraulic truck tyre changer for tubeless or tube-type tyres for trucks and buses with a maximum wheel diameter of 1640 mm and a maximum wheel width of 850 mm. Designed for intensive and professional use, the self-centring chuck locks grooved and split ring rims from 14" to 30".

Technical data
Clamping range: 14"–30"
Max. wheel diameter: 1640 mm (65")
Max. wheel width: 850 mm (34")
Max. wheel weight: 1200 kg (2645 lbs)
Max. torque: 25,000 Nm
Speed of rotation: 7 rpm
Three-phase chuck: 1.5 kW (2 hp)
Power supply: 230 V/3/50–60 Hz
Net weight: 605 kg (1333 lbs)

Features / technical specifications

• Type: Electro-hydraulic universal tyre changer for trucks and buses
• Suitable for: Tubeless and tube-type tyres
• Rim compatibility: Grooved and split ring rims 14" to 30"
• Designed for: Intensive and professional use
• Clamping range: 14"–30"
• Max. wheel diameter: 1640 mm (65")
• Max. wheel width: 850 mm (34")
• Max. wheel weight: 1200 kg (2645 lbs)
• Max. torque: 25,000 Nm
• Rotation speed: 7 rpm
• Chuck power: 1.5 kW (2 hp)
• Power supply: 230 V/3/50–60 Hz
• Net weight: 605 kg (1333 lbs)
