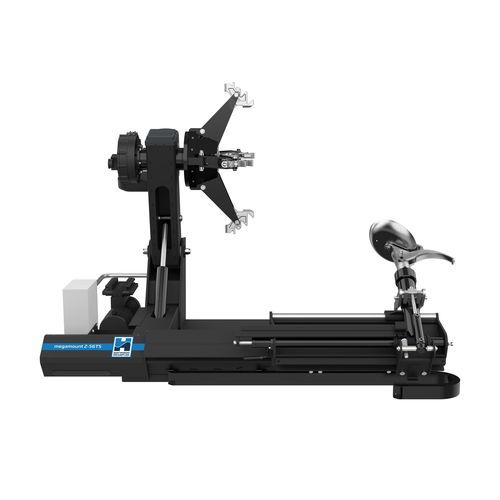

Truck tyre changer megamount 2-56T S

for busesfor tractorsfor industrial vehicles

Short description
Fully automatic electro-hydraulic universal tyre changer for tubeless wheels of heavy vehicles — trucks, buses, tractors and earthmoving equipment. Clamping range without extensions 14"–42", expandable to 56" with extensions.

Description
Electro-hydraulic tyre changer designed for tubeless tyres on heavy vehicles. The tool arm movement is fully automatic in both lifting and rotation, allowing selection of the appropriate tool for bead-breaking, tool-assisted tyre extraction and mounting. Two-position locking system and the ability to work with a free disc reduce operator effort and increase working speed. The bead breaker unit travels automatically. A mobile control unit provides flexible positioning on site. Low-voltage electrical supply enhances workshop safety.

Technical data
Clamping range: 14"–42" (56" with extensions)
Max. wheel diameter: 2300 mm (91")
Max. wheel width: 1300 mm (52") for MM2-56TA, 1150 mm (45") for MM2-56T
Max. wheel weight: 2000 kg
Max. torque: 25,000 Nm
Speed of rotation: 4.5 – 9 rpm
Three-phase chuck: 2.2 – 3 kW (3 – 4 hp)
Power supply: 400V/3/50 Hz
Net weight: 905 kg

Features / technical specifications

• Clamping range: 14"–42" (56" with extensions)
• Max. wheel diameter: 2300 mm (91")
• Max. wheel width: 1300 mm (52") for MM2-56TA, 1150 mm (45") for MM2-56T
• Max. wheel weight: 2000 kg
• Max. torque: 25,000 Nm
• Speed of rotation: 4.5 – 9 rpm
• Three-phase chuck: 2.2 – 3 kW (3 – 4 hp)
• Power supply: 400V/3/50 Hz
• Net weight: 905 kg
