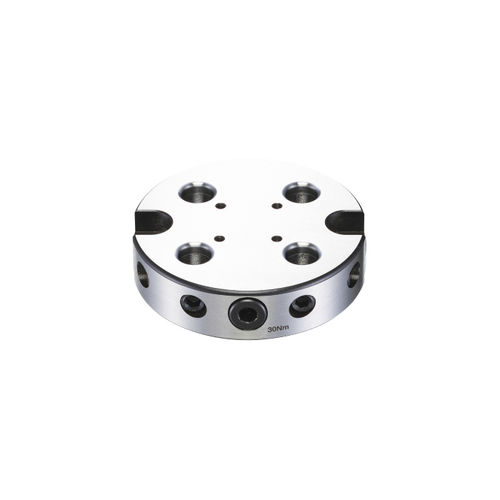

Precision base plate M-52x52(8004G) | M-96x96(8053G)modularsteelround
Add to favorites
Compare this product
Characteristics
- Type
- precision, modular
- Material
- steel
- Configuration
- round
- Other characteristics
- for 5-axis machining, for zero-point clamping systems, vertical, horizontal
Description
ZERO POSITIONING ROUND PLATE (WITH CLAMPING EDGE AND MOUNTING HOLES)
1. Base plate can greatly save the positioning time of the fixture during change over
2. Installing Quick Change Device in the entire production line can effectively reduce the accumulated tolerance
3. Fixtures can be rotated 90 degrees while maintaining centering accuracy
4. Support common stud specifications in the market (52/ 96 mm bolt distance)
5. Various specifications for flexible configuration, especially suitable for 4, 5-axis machine tool with limited bed space
PDF:
https://www.homge.com.tw/pdf/198205/Zero-Point-Quick-Change-Devices-G.pdf
