Precision clamping plate M-96x96(8051A)
automaticrectangularfor zero-point clamping systems

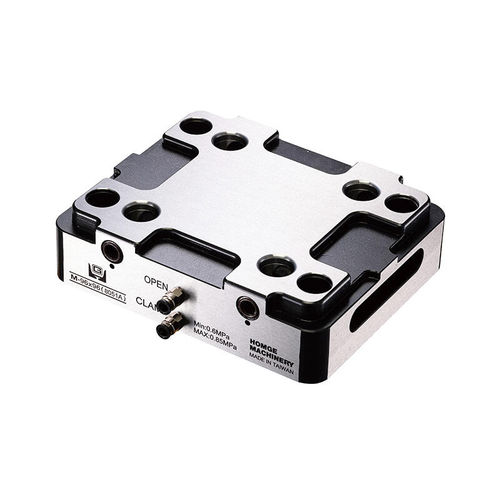

Precision clamping plate - M-96x96(8051A) - HOMGE MACHINERY IND. CO., LTD. - automatic / rectangular / for zero-point clamping systems

Precision clamping plate - M-96x96(8051A) - HOMGE MACHINERY IND. CO., LTD. - automatic / rectangular / for zero-point clamping systems

Add to favorites

Compare this product

Go to the HOMGE MACHINERY IND. CO., LTD. website for more information

Characteristics

Type: precision, automatic
Configuration: rectangular
Other characteristics: for zero-point clamping systems, quick-change, with pneumatic clamping

Description

Overview
Pneumatic rectangular plate for zero-point clamping systems with integrated automation. Designed for compatibility with 96 zero-point automation systems, it uses pull studs (M-96x96PS) for quick, repeatable installation and improves machining accuracy and process reliability.

Specifications (unit: mm)

Model: M-96x96(8051A)
Dimensions (L x W x H): 192 x 156 x 51 mm
Pull studs: M-96x96PS
Mounting holes: 150 x 100 mm
Weight: 9.2 kg

Technical details & applications

Compatibility: 96 zero-point automation systems
Clamping type: pneumatic (mechanical option possible)
Intended use: integration into automated machining cells to increase efficiency and repeatability
Installation: quick locking via pull studs for automated loading/unloading
