Horizontal machining center zero-point clamping unit M-96x96(9319)-20D

mechanicalhigh-precisionfor 5-axis machining

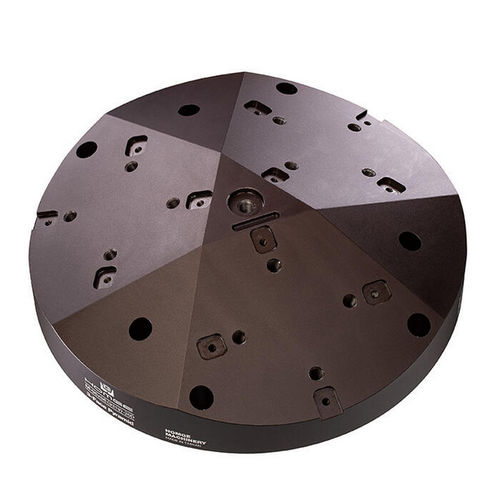

The 3-Faced Pyramid is designed to improve the efficiency of 5-axis machining centers. Its three-sided bevel design can clamp multiple workpieces at the same time and provide optimal tool accessibility, which is particularly suitable for 5-sided machining. This design not only significantly reduces changeover time, but also extends spindle running time, thereby improving overall production efficiency. Advantages: - Multi-workholding: The three-sided design allows multiple workpieces to be clamped in a single setup, reducing the number of changeovers. - Fast changeover: The integrated zero point positioning system makes the replacement of fixtures and workpieces faster and reduces non-productive time. - High repeatability: The zero point system provides up to ±0.005mm repeatability to ensure machining consistency. - Modular design: It can be matched with a variety of fixtures (such as center vises, dovetail fixtures, etc.) to meet different processing needs. How to choose: When choosing the right zero-point positioning pyramid, it is recommended to consider the following factors: • Machine compatibility: Make sure the selected pyramid size and interface match your 5-axis machining center. • Fixture compatibility: Confirm whether the pyramid supports the type of fixture you commonly use, such as self-centering vises or dovetail clamps. • Automation needs: If your production line includes robots or automatic pallet change systems, it will be more appropriate to choose a pyramid that supports these functions.
