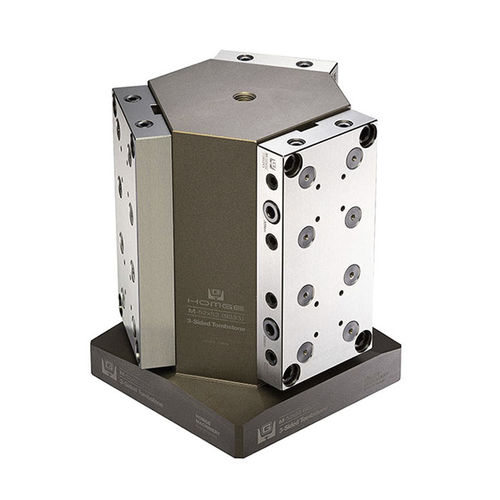

3-sided tombstone M-52x52(9333)+3xM-52x52(7062)

modular

Advancements in Machining Centers Efficiency The 3-sided or 4-sided Tombstone effectively enhances changeout efficiency in machining centers, particularly with smaller 5-axis machines. This innovation overcomes conventional clamping setup restrictions, enabling the execution of complex tasks even on compact machines. This tombstone is suitable for the zero-point 52 mm clamping system, known for its flexibility, precision, and ease of use. Up to 6 sets of M-52x52(8011) or (8011G) grid plates can be installed, allowing customers to match with ASC vises or directly clamp the workpiece. Additionally, it supports up to 3 sets of M-52x52 (7062) or M-52x52 (7062G) 2-fold grid plates. Suitable for 3-, 4- and 5-axis machine tool users who often apply multiple-sided processing.
