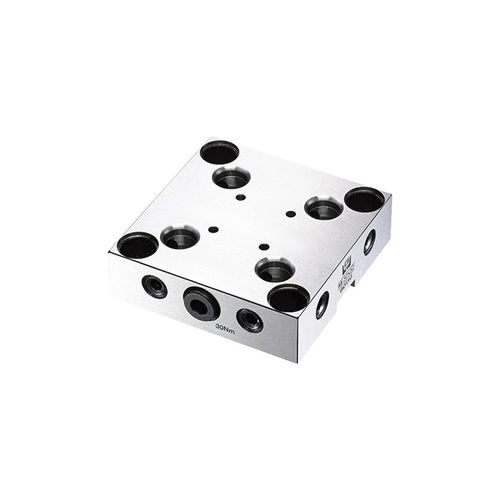

Modular clamping plate M-52x52(8011G) | M-96x96(80522G)
precisionsteelrectangular

Modular clamping plate - M-52x52(8011G) | M-96x96(80522G) - HOMGE MACHINERY IND. CO., LTD. - precision / steel / rectangular

Modular clamping plate - M-52x52(8011G) | M-96x96(80522G) - HOMGE MACHINERY IND. CO., LTD. - precision / steel / rectangular

Modular clamping plate - M-52x52(8011G) | M-96x96(80522G) - HOMGE MACHINERY IND. CO., LTD. - precision / steel / rectangular - image - 2

Modular clamping plate - M-52x52(8011G) | M-96x96(80522G) - HOMGE MACHINERY IND. CO., LTD. - precision / steel / rectangular - image - 3

Add to favorites

Compare this product

Go to the HOMGE MACHINERY IND. CO., LTD. website for more information

Characteristics

Type: modular, precision
Material: steel
Configuration: rectangular, square
Other characteristics: for zero-point clamping systems, for 5-axis machining, vertical, horizontal

Description

Suitable for mounting several 5-axis vises at one processing. It can also be installed on the customer's own fixtures and tooling tombstones as a multi-clamping solution. ✅ Perfectly adapts to:
