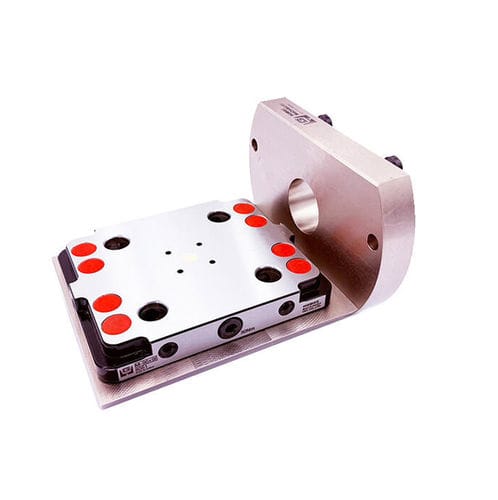

Zero-point clamping system adapter plate M-52/96(8056H)-90

for rotary tables

Product Overview

• Rapid setup: High zero-point repeatability reduces changeover and alignment time to accelerate machine setup and minimize downtime.
• High-rigidity structure: Precision single-piece casting in ductile iron (FCD70) provides vibration damping and thermal stability to absorb cutting chatter; when mounted on a 4th-axis rotary table it increases support and cutting-force resistance for consistent machining quality.
• Modular flexibility: Integrates with standard zero-point sub-plates M-52x52 (8001) and M-96x96 (8051); compatible with self-centering vises (ASC-S, ASC-M), five-axis compact vises (ACK-), top-clamping devices or custom fixture plates for versatile workholding.

Application / Visual
Zero-point quick-change L-shaped adapter plate designed to convert vertical 3-axis machines for horizontal clamping applications. Material: Ductile Iron (FCD70).

Model table
Model | LxWxH | Pull Studs | Standard with | Weight (kg)
M-52/96(8056H)-90 + 8001 | Ø210x150x237 | M-52x52PS | Rectangular Plate — M-52x52 (8001) x 1pc / M-52x52 (8001G) x 1pc | 15.9
M-52/96(8056H)-90 + 8051 | Ø210x150x237 | M-96x96PS | Rectangular Plate — M-96x96 (8051) x 1pc / M-96x96 (8051G) x 1pc | 18.6

Technical specifications

• Unit: mm
• Material: Ductile Iron (FCD70)
• Compatible model: M-52/96(8056H)-90 (configurable with 8001 or 8051 plates)
• Overall dimensions (adapter + plate): Ø210 x 150 x 237 mm (for listed configurations)
• Pull studs: M-52x52PS or M-96x96PS depending on plate
• Standard content: Rectangular Plate M-52x52 (8001) or M-96x96 (8051); G-version plates supported
• Weight (with plate): 15.9 kg (with 8001) / 18.6 kg (with 8051)
• Intended use: Integration with zero-point quick-change systems, self-centering vises, top-clamping devices and custom fixture plates to enable fast, repeatable workholding.
