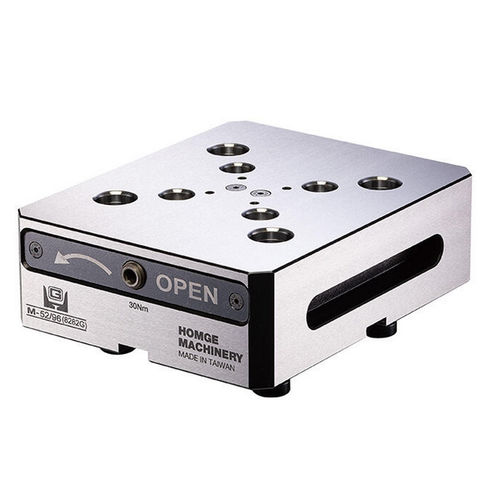

Plate zero-point clamping unit M-52/96 series

modularmechanicalfor machine tools

These combo rectangular and round plates or risers support two standardized grid sizes, 52 mm and 96 mm, which allows compatibility with all vise sizes from HOMGE. - Modular design: Can be quickly assembled and adapted to different production needs, improving flexibility and scalability. - Compatible with 3-axis, 4-axis, and 5-axis machines and indexing plates, it is suitable for a wide range of processing applications and enhances production capacity. - High-precision positioning ensures accurate clamping of workpieces - Directly clamp the workpiece: Simplify the workpiece clamping process, reduce preparation time, and improve work efficiency. - Easy Operation and Maintenance Specifications: Model: M-52/96(8282G), LxWxH: 192x156x60, Pull Studs: M-52x52PS/ M-96x96PS, Weight (kg): 11.2 Model: M-52/96(82822G), LxWxH: 192x156x100, Pull Studs: M-52x52PS/ M-96x96PS, Weight (kg): 18.1
