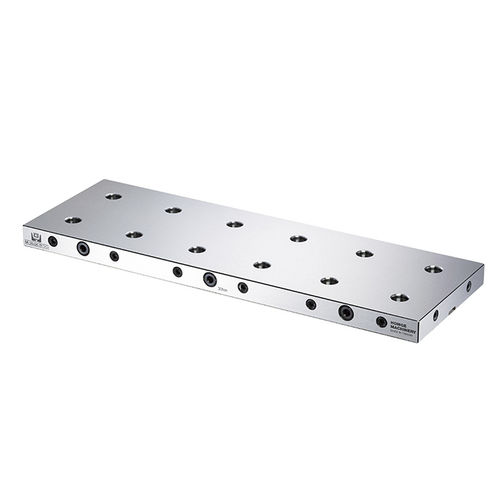

Modular base plate M-96X96(8072G)
precisionsteelrectangular

Modular base plate - M-96X96(8072G) - HOMGE MACHINERY IND. CO., LTD. - precision / steel / rectangular

Modular base plate - M-96X96(8072G) - HOMGE MACHINERY IND. CO., LTD. - precision / steel / rectangular

Add to favorites

Compare this product

Go to the HOMGE MACHINERY IND. CO., LTD. website for more information

Characteristics

Type: modular, precision
Material: steel
Configuration: rectangular
Other characteristics: for 5-axis machining, for zero-point clamping systems, threaded

Description

CLAMPING BRIDGE (SINGLE SIDED) -G MODEL：M-96X96(8072G) Can be installed on 4 axis trunnion tables. Suitable for mounting several 5-axis vises at one processing. PDF: https://www.homge.com.tw/pdf/198205/Zero-Point-Quick-Change-Devices-G.pdf
