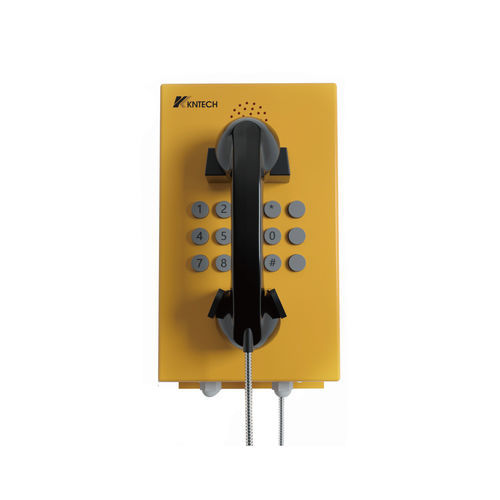

Analog telephone KNSZ-11VoIPIP66for tunnel
Add to favorites
Compare this product
Characteristics
- Network
- analog, VoIP
- Protection class
- IP66
- Applications
- industrial, for railway applications, for subways, for tunnel, highway, for marine applications, for underground mining
- Other characteristics
- vandal-proof, waterproof, outdoor, auto dial, dust-proof, hotline
- Sound level
Max.: 220 dB
Min.: 70 dB
Description
Product overview
Key Functional Features & Benefits
Installation
Dimensions
Certification
Analogue Specification
VoIP Specification
Caractéristiques / Spécifications techniques
- Model: KNSZ-11
- Size: 250*165*142.6(mm)
- Material: Cold-roll steel sheet
- Ingress protection: IP66 (waterproof and dust proof)
Key Functional Features & Benefits
- Cold-roll steel sheet construction with vandal & tamper-resistant hardware for easy installation
- Waterproof rating IP66
- Full keypad with memory; 3-button programmable telephone supporting hotline dialing
- Heavy duty handset with hearing aid compatible receiver and noise cancelling microphone
- Handset uses industrial strong armored cord
- Silicone keypad keeps keypad waterproof and dust proof
- Service temperature range from -40°C to +75°C
- Magnetic reed hook-switch; telephone line powered
- Lightning protection to ITU-T recommendation K.21
- Phone integrity wiring to enable system to check if unit remains operational (requires PABX support)
- Optional 7 minute timeout to release the line if handset left off-hook (available upon buyer requirement)
- Applications include tunnel, metro, railway, LRT, speedway, marine, ship, offshore, mine, power plant, bridge
Installation
- Provided installation drawings and mounting diagrams for site installation and fixing
Dimensions
- Overall size and mounting dimensions provided (product size: 250 x 165 x 142.6 mm)
Certification
- EN55022: emissions
- EN55024: immunity
- Ingress Protection: GB4208-93 IP66
- FCC
- ITU-T Recommendations K.21
- EMC: EN50121 (Railway application - Electromagnetic Compatibility)
Analogue Specification
- PSTN analogue telephone
- DTMF dialing
- MTBF: 100000 hours
- MTTR: 2 hours
- Connection: RJ11 screw terminal pair cable (or RJ11 socket/plug upon request)
- Applicable for SPC exchange, PABX and dispatching exchange systems with feeding voltage 33-60V
- Ambient temperature: -30 ~ +60°C; Relative humidity: 10%~95%; Atmospheric pressure: 86~106 Kpa; Circumstance noise: < 60 dB(A)
- Sound level of ringing: over 70 dB(A)
- Standard DTMF frequencies specified (low and high frequency groups) with frequency deviation -1.5% ~ +1.5%
- Call transmission index: (5KM) SLR < 12, RLR < -1, STMR > 10; output impedance 600 Ohm; maximum distance 7KM
- Memory dialing: up to 12 groups of numbers stored, maximum length 16 digits each
VoIP Specification
- VoIP variant available; VoIP-specific configuration and specification details provided for VoIP model (KNSZ-11 VoIP)
Caractéristiques / Spécifications techniques
- Model: KNSZ-11
- Material: Cold-roll steel sheet
- Dimensions: 250 x 165 x 142.6 mm
- Ingress protection: IP66
- Operating temperature: -40°C to +75°C (service range noted)
- Handset: heavy duty, hearing aid compatible, noise canceling microphone, armored cord
- Keypad: full silicone keypad, waterproof and dust proof, 3 programmable buttons
- Dialing: DTMF; PSTN analogue and VoIP variants available
- Connection (analogue): RJ11 screw terminal pair cable (or RJ11 socket/plug upon request)
- Power: telephone line powered (analogue)
- Protection: lightning protection to ITU-T K.21
- Reliability: MTBF 100000 hours; MTTR 2 hours
- Applications: tunnels, metro, railway, LRT, speedway, marine, ship, offshore, mines, power plants, bridges
