VoIP telephone KNSP-01
SIPWiFiPoE

VoIP telephone - KNSP-01 - HONGKONG KOON TECHNOLOGY LTD - SIP / WiFi / PoE
VoIP telephone - KNSP-01 - HONGKONG KOON TECHNOLOGY LTD - SIP / WiFi / PoE
VoIP telephone - KNSP-01 - HONGKONG KOON TECHNOLOGY LTD - SIP / WiFi / PoE - image - 2
VoIP telephone - KNSP-01 - HONGKONG KOON TECHNOLOGY LTD - SIP / WiFi / PoE - image - 3
VoIP telephone - KNSP-01 - HONGKONG KOON TECHNOLOGY LTD - SIP / WiFi / PoE - image - 4
VoIP telephone - KNSP-01 - HONGKONG KOON TECHNOLOGY LTD - SIP / WiFi / PoE - image - 5
VoIP telephone - KNSP-01 - HONGKONG KOON TECHNOLOGY LTD - SIP / WiFi / PoE - image - 6
VoIP telephone - KNSP-01 - HONGKONG KOON TECHNOLOGY LTD - SIP / WiFi / PoE - image - 7
VoIP telephone - KNSP-01 - HONGKONG KOON TECHNOLOGY LTD - SIP / WiFi / PoE - image - 8
VoIP telephone - KNSP-01 - HONGKONG KOON TECHNOLOGY LTD - SIP / WiFi / PoE - image - 9
Add to favorites
Compare this product
Go to the HONGKONG KOON TECHNOLOGY LTD website for more information

Characteristics

Network
VoIP, SIP, TCP/IP, PoE, Ethernet, LAN, WiFi
Protection class
IP66
Applications
industrial, for railway applications, for subways, for tunnel, highway, for marine applications, for underground mining
Other characteristics
weatherproof, waterproof, hands-free, dust-proof, with loudspeaker, with indicator lights

Description

Overview

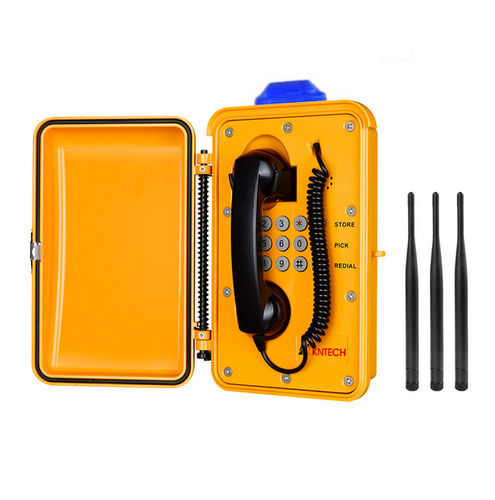

  • VoIP WiFi weatherproof telephone, model KNSP-01 WiFi (VoIP model SP0010032), aluminium alloy die-cast enclosure, IP66.


Key features
  • VoIP SIP 2.0 with DTMF support (RFC 2833, SIP Info/DTMF) and audio codecs G.711, G.722, G.729.
  • Power: PoE (IEEE 802.3af, Class 0) or local 12 VDC; idle 2 W, max 10 W.
  • Network: 10/100 Base-TX Ethernet (RJ45), Cat5e or better; 2 Ethernet ports; WiFi 2.4 GHz (802.11b/g/n, 2.4–2.483 GHz).
  • Ingress protection IP66; operating temperature -40°C to +70°C; aluminum alloy die-cast body with powder-coated UV-stabilized finish.
  • Handset with hearing-aid compatible (HAC) receiver, noise-cancelling microphone and industrial curly cord; silicon keypad for waterproofing and dust protection.
  • Magnetic reed hook-switch; full keypad with memory; 3 programmable buttons; optional LED ringing indicator and optional 7-minute time-limited call.
  • Auxiliary dry contact (1 Aux output) and rated switching: up to 1 A, 125 VAC / 60 VDC.
  • Protection: RJ45 surge protection and DC input over-voltage/over-current protection.
  • Remote management: web GUI, remote software upgrade, remote configuration and centralized monitoring; status LED.
  • Echo cancellation G.167/G.168; full duplex 2-way hands-free communication.
  • MTBF: 100,000 hours; MTTR: 2 hours.
  • Applications: tunnel, metro, railway, LRT, highway, marine, ship, offshore, mine, power plant, bridge and other industrial and transport environments.


Certifications
  • Australian communications: AS/CA S004
  • Australian equipment safety: AS/NZS 60950.1:2015
  • RCM: AS/NZS CISPR 32
  • EMC: EN55032, EN55024, EN61000-3-2


Packaging
  • Unit size: 320 x 205 x 120 mm. Unit N.W.: 4.86 kg.
  • Single box: 430 x 280 x 200 mm. Unit G.W.: 6.5 kg.
  • Outer carton (4 pcs): 580 x 460 x 460 mm. G.W.: 25 kg.


Technical specifications
  • Model: KNSP-01 WiFi; VoIP model: SP0010032.
  • SIP version: SIP 2.0.
  • DTMF: RFC2833 and SIP INFO supported.
  • Audio codecs: G.711, G.722, G.729; echo cancellation: G.167 / G.168.
  • Network protocols: IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP; LAN protocols: PoE (802.3af), IEEE 802.1x, STP/RSTP.
  • Ethernet: 10/100 Base-TX, RJ45 (Cat5e or better); 2 Ethernet ports.
  • Wireless: 2.4 GHz 802.11b/g/n (2.4–2.483 GHz).
  • Power: PoE IEEE802.3af (Class 0) or 12 VDC local; idle 2 W, max 10 W.
  • Surge protection: RJ45 surge protection; DC input over-voltage and over-current protection.
  • Auxiliary contacts: 1 dry contact output; rated carry current 1 A; max switching 1 A, max switching voltage 125 VAC / 60 VDC.
  • Free dial: max 16 digits per number; memory programming via non-volatile flash and Web GUI.
  • Operating temperature: -40°C to +70°C; ingress protection: IP66.
  • Accessories: HAC handset with curly cord; silicon keypad; optional top LED indicator.
