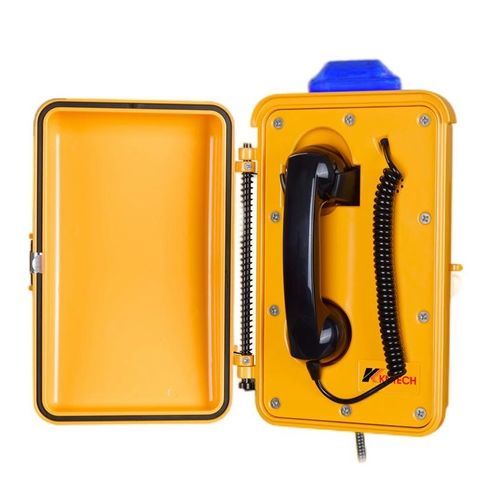

Analog telephone KNSP-03-D23

IPPoELAN

Overview
Blue Light Station designed for outdoor and industrial areas; industrial-grade, waterproof and corrosion-resistant unit with integrated blue alarm lamp and telephone functionality.

Basic information
Model: KNSP-03-D23
Size: 320*205*120mm
Material: Aluminum alloy

Features

• Robust aluminium alloy die-cast body, vandal & tamper-resistant hardware
• Waterproof rating IP66 (dust proof)
• Line-powered blue indication lamp
• Noise cancelling microphone to filter high ambient noise; handset can be configured as hotline (no keypad) and supports scroll dialing
• Magnetic reed hook-switch
• DC input overvoltage/overcurrent protection and RJ45 surge protection
• Heavy duty handset with hearing-aid compatible (HAC) receiver
• Handset with industrial strong curly cord
• Door cover: automatic orientation and good self-closing
• Operating temperature range: -40°C to +70°C
• Support echo cancellation
• Support remote software upgrade, configuration and monitoring
• Powder coated in UV stabilized polyester finish
• Applications: tunnel, metro, railway, LRT, speedway, marine, ship, offshore, mine, power plant, bridge, etc.

Order information
Model number | Power Supply | Item Number
KNSP-03-IP-Y_AD | DC12V 1A | SP0030052
KNSP-03-IP-Y_P | POE | SP0030022
KNSP-03-IP-Y_ADP | DC12V 1A + POE | SP0030092
*AD = Adapter UL (Input: AC110~240V, Output: DC12V 1A); *P = POE

Certifications
Australian communications: AS/CA S004
Australian equipment safety: AS/NZS 60950.1:2015
RCM: AS/NZS CISPR 32
EMC: EN55032, EN55024, EN61000-3-2

Installation & Packaging
Unit size: 320 * 205 * 120 mm
Net weight (unit): 4.86 KG
1 pcs packing box size: 439 * 277 * 191 mm; N.W: 5.8 KG
6 pcs in 1 outer carton box size: 730 * 390 * 340 mm; N.W: 36.5 KG (aggregate as listed)

Specification (key points)
VoIP SIP2.0 telephone; DTMF dialing supported
Audio codecs: G.711, G.723, G.726, G.729
MTBF: 100,000 hours; MTTR: 2 hours
Network: 10/100 BaseTX Ethernet, RJ45 (Cat5e or better)
Communication: full duplex 2-way audio
IP protocols: IPv4, TCP, UDP, RTP, DHCP, SIP
Call control signaling: SIP (DTMF via SIP Info, RFC2833)
LAN: 1 x LAN with Power over Ethernet (PoE 802.3af) and 1 x LAN (IEEE 802.3) network access
Power: PoE (IEEE802.3af Class 0) or local 12V DC (Idle 2W, Max 10W)
Control: IEEE 802.1x, STP (IEEE 802.1d), RSTP (IEEE 802.1d-2004)
Auxiliary contacts: optional
Programming/configuration: via Web GUI; non-volatile flash memory
1 Aux output (dry contact) — rated load: 0.3 A at 125 VAC; 1 A at 30 VDC; max switching voltage 125 VAC/30 VDC; max switching current 1 A
Echo cancellation: ITU-T G.167/G.168

Applications
Intended for outdoor or industrial emergency alarm and help points: chemical industry, nuclear power generation areas, tunnels, railways, marine/offshore, mining, bridges and other hazardous or high-noise environments.

Caractéristiques / Spécifications techniques

• Model: KNSP-03-D23 (primary model on page)
• Alternate model variants: KNSP-03-IP-Y_AD, KNSP-03-IP-Y_P, KNSP-03-IP-Y_ADP
• Dimensions: 320 x 205 x 120 mm
• Material: Aluminium alloy, die-cast
• Ingress protection: IP66
• Operating temperature: -40°C to +70°C
• Power options: PoE (802.3af) or local 12 VDC (Idle 2W, Max 10W)
• Network: 10/100 BaseTX Ethernet, RJ45 (Cat5e+)
• Audio codecs: G.711, G.723, G.726, G.729; echo cancellation ITU-T G.167/G.168
• Accessories/outputs: 1 Aux dry contact output (option); RJ45 surge protection; DC overvoltage/overcurrent protection
• Weight (unit): ~4.86 kg
• Certifications: AS/CA S004, AS/NZS 60950.1:2015, AS/NZS CISPR 32, EN55032, EN55024, EN61000-3-2
