Production motor spindle MTR 1090-140
machiningspindleelectric

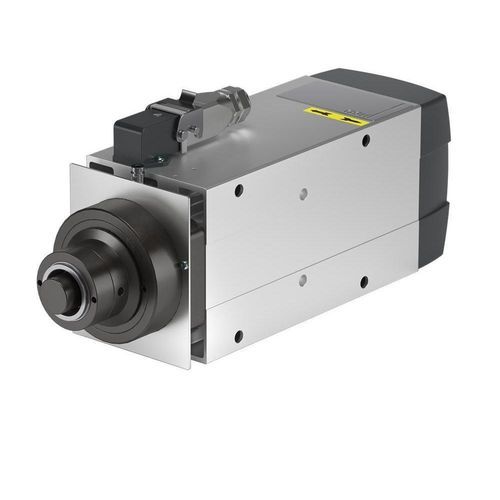

Production motor spindle - MTR 1090-140 - HSD - machining / spindle / electric
Production motor spindle - MTR 1090-140 - HSD - machining / spindle / electric
Add to favorites
Compare this product
Go to the HSD website for more information

Characteristics

Function
machining, spindle, for production
Drive system
electric
Spindle mount
HSK-C 40
Lubrication/cooling
air-cooled, forced air-cooled
Other characteristics
high-speed
Rotational speed

24,000 rpm
(150,796.4474 rad.min-1)

Diameter

Max.: 119.5 mm
(4.7 in)

Min.: 102 mm
(4 in)

Description

Overview
Designed and manufactured by HSD Mechatronics, the MTR 1090-140 is an electrospindle for industrial machining of wood, composites and metals. It features an HSK C40 tool interface, high maximum speed and selectable cooling via shaft-driven fan or electric fan, making it suitable for production and high-speed machining applications.

Materials / Applications
  • Wood
  • Composite materials


Technical specifications
Body diameter [mm] : □ 102x119.5
Max speed [rpm] : 24,000
Torque S1/S6 (40%) [Nm] : 3.2 / 3.8 ; 2.4 / 2.9
Power S1/S6 (40%) [kW] : 6 / 7.2 ; 4.5 / 5.4
Rated voltage [V] : 220 / 380
Tool interface : HSK C40
Cooling : Shaft driven fan / Electric fan
Cooling housing : 15 ; 10

Characteristics / Technical details
  • Model: MTR 1090-140
  • Manufacturer: HSD Mechatronics
  • Body diameter: □ 102x119.5 mm
  • Max speed: 24,000 rpm
  • Torque (S1 / S6 40%): 3.2 / 3.8 Nm and 2.4 / 2.9 Nm (variant values)
  • Power (S1 / S6 40%): 6 / 7.2 kW and 4.5 / 5.4 kW (variant values)
  • Rated voltage: 220 / 380 V
  • Tool interface: HSK C40
  • Cooling: shaft-driven fan or electric fan
  • Cooling housing options: 15 and 10
