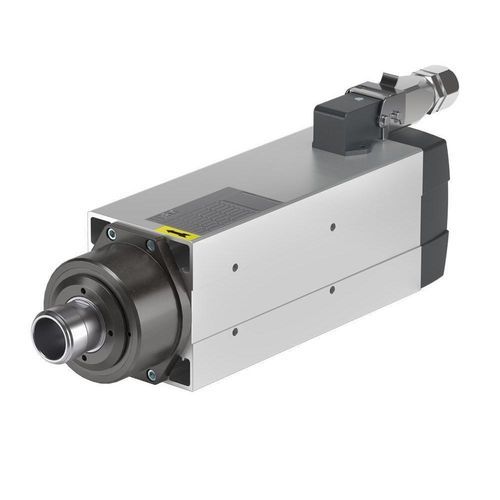

Production motor spindle MT 1073-120

machiningspindleelectric

Product overview
Discover the MT 1073-120 electrospindle from HSD, designed and manufactured for industrial machining of wood and composite materials. Compact and high-speed, the MT 1073-120 suits both continuous (S1) and intermittent (S6) production requirements.

Suitable materials

• Wood
• Composite

Technical sheet (summary)

• Model: MT 1073 - 3 kW
• Body diameter: □ 82.5 x 92.5 mm
• Max speed: 24,000 rpm
• Torque S1 / S6 (40%): 1.6 Nm / 1.9 Nm
• Power S1 / S6 (40%): 3 kW / 3.6 kW
• Rated voltage: 220 / 380 V
• Tool interface: ER25 (option) | HSK C32 (option)
• Cooling: Shaft-driven fan or electric fan
• Cooling housing: 8

Applications / features

• Electrospindle for industrial machining operations
• Optimized for processing wood and composite components
• Flexible tool interface options (ER25 or HSK C32) for various tooling requirements

Technical specifications

• Model: MT 1073 - 3 kW
• Body diameter: □ 82.5 x 92.5 mm
• Maximum speed: 24,000 rpm
• Torque S1 / S6 (40%): 1.6 Nm / 1.9 Nm
• Power S1 / S6 (40%): 3 kW / 3.6 kW
• Rated voltage: 220 / 380 V
• Tool interface options: ER25, HSK C32
• Cooling type: Shaft-driven fan or electric fan
• Cooling housing: 8
