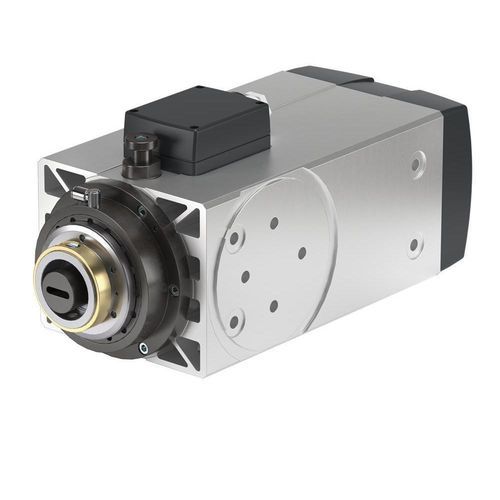

Machining motor spindle MTR 1120-170
spindleAC motorelectric

Machining motor spindle - MTR 1120-170 - HSD - spindle / AC motor / electric
Machining motor spindle - MTR 1120-170 - HSD - spindle / AC motor / electric
Add to favorites
Compare this product
Go to the HSD website for more information

Characteristics

Function
machining, spindle
Drive system
AC motor, electric
Spindle mount
HSK-C 63
Lubrication/cooling
air-cooled, forced air-cooled
Other characteristics
high-speed
Rotational speed

18,000 rpm
(113,097.3355 rad.min-1)

Diameter

Min.: 145 mm
(5.7 in)

Max.: 177 mm
(7 in)

Description

Product overview
The MTR 1120-170 electrospindle, designed and manufactured by HSD, is intended for machining wood and composite materials. The range includes the MTR 1120 - 8.1 kW variant with HSK C63 tool interface.

Materials
  • Wood
  • Composite

Technical sheet
MTR 1120 - 8.1 kW
Body diameter [mm] | □ 177x145
Max speed [rpm] | 18,000
Torque S1/S6 (40%) [Nm] | 12.9 / 15.4
Power S1/S6 (40%) [kW] | 8.1 / 9.7
Rated voltage [V] | 380
Tool interface | HSK C63
Cooling | Shaft driven fan / Electric fan
Cooling housing | 35

Technical characteristics
  • Variant: MTR 1120 - 8.1 kW
  • Body diameter: □ 177x145 mm
  • Maximum speed: 18,000 rpm
  • Torque S1 / S6 (40%): 12.9 Nm / 15.4 Nm
  • Power S1 / S6 (40%): 8.1 kW / 9.7 kW
  • Rated voltage: 380 V
  • Tool interface: HSK C63
  • Cooling options: shaft driven fan or electric fan
  • Cooling housing dimension: 35
