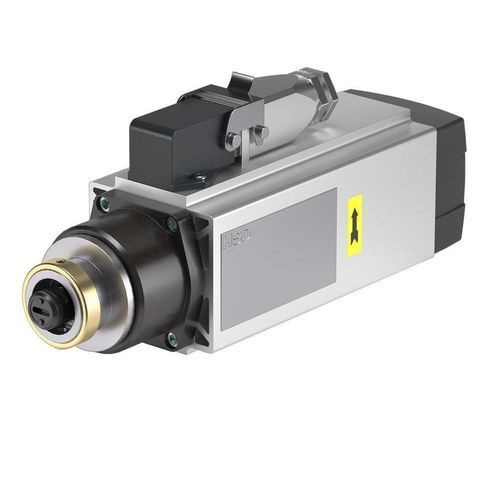

Machining motor spindle MTR 1055-90millingspindlemotorized
Add to favorites
Compare this product
Characteristics
- Function
- milling, machining, spindle
- Drive system
- motorized, electric
- Spindle mount
- HSK-C 32
- Lubrication/cooling
- forced air-cooled
- Other characteristics
- high-speed
- Rotational speed
24,000 rpm
(150,796.4474 rad.min-1)- Diameter
Max.: 71.5 mm
(2.8 in)Min.: 70 mm
(2.8 in)
Description
Product overview
Discover the MTR 1055-90 electrospindle from HSD, engineered for industrial machining applications. The series is designed to machine a wide range of materials and metals and is available in multiple power variants.
Materials
Technical sheet
MTR 1055 - 1kW
Body diameter [mm] : □ 70x71.5
Max speed [rpm] : 24000
Torque S1/S6 (40%) [Nm] : 0.53 / 0.69
Power S1/S6 (40%) [kW] : 1 / 3
Rated voltage [V] : 220 / 380
Tool interface : HSK C32
Cooling : shaft-driven fan
Cooling housing : 3.5
Characteristics / technical specifications
Discover the MTR 1055-90 electrospindle from HSD, engineered for industrial machining applications. The series is designed to machine a wide range of materials and metals and is available in multiple power variants.
Materials
- Wood
- Composite
Technical sheet
MTR 1055 - 1kW
Body diameter [mm] : □ 70x71.5
Max speed [rpm] : 24000
Torque S1/S6 (40%) [Nm] : 0.53 / 0.69
Power S1/S6 (40%) [kW] : 1 / 3
Rated voltage [V] : 220 / 380
Tool interface : HSK C32
Cooling : shaft-driven fan
Cooling housing : 3.5
Characteristics / technical specifications
- Model: MTR 1055-90 (example variant: MTR 1055 - 1kW)
- Body diameter: □ 70 x 71.5 mm
- Maximum speed: 24000 rpm
- Torque S1 / S6 (40%): 0.53 Nm / 0.69 Nm
- Power S1 / S6 (40%): 1 kW / 3 kW
- Rated voltage: 220 V / 380 V
- Tool interface: HSK C32
- Cooling system: shaft-driven fan
- Cooling housing: 3.5
