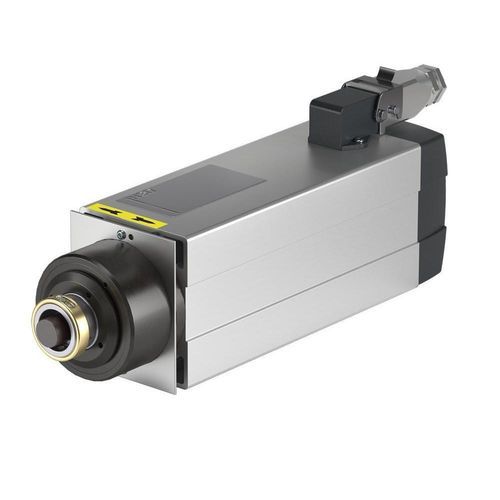

Machining motor spindle MTR 1073-120

spindleelectricER

Product overview
The MTR 1073-120 electrospindle by HSD is supplied in the MTR Line and is intended for machining wood, composites and metals. This listing refers to the 3 kW variant (MTR 1073 - 3kW) with ER C32 tool interface.

Recommended materials / applications

• Wood
• Composite
• Metals

Technical data
MTR 1073 - 3kW
Body diameter [mm]: □ 82.5x92.5
Max speed [rpm]: 24000
Torque S1/S6 (40%) [Nm]: 1.6 / 1.9
Power S1/S6 (40%) [kW]: 3 / 3.6
Rated voltage [V]: 220 / 380
Tool interface: ER C32
Cooling: shaft-driven fan / electric fan
Cooling housing: ~8

Key specifications

• Model designation: MTR 1073-120 (variant: MTR 1073 - 3kW)
• Mounting diameter: □ 82.5 x 92.5 mm
• Maximum speed: 24,000 rpm
• Torque S1 / S6 (40%): 1.6 Nm / 1.9 Nm
• Power S1 / S6 (40%): 3 kW / 3.6 kW
• Rated voltage: 220 V / 380 V
• Tool interface: ER C32
• Cooling methods: shaft-driven fan or electric fan
• Cooling housing value: approximately 8
• Product family: MTR Line
