Machining motor spindle MT 1073-060
millingspindleelectric

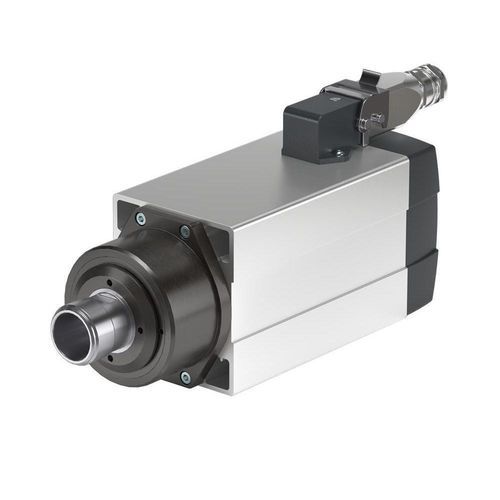

Machining motor spindle - MT 1073-060 - HSD - milling / spindle / electric
Machining motor spindle - MT 1073-060 - HSD - milling / spindle / electric
Add to favorites
Compare this product
Go to the HSD website for more information

Characteristics

Function
milling, machining, spindle
Drive system
electric
Spindle mount
ER25
Lubrication/cooling
air-cooled, forced air-cooled
Other characteristics
high-speed
Rotational speed

Max.: 24,000 rpm
(150,796.4474 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Diameter

82.5 mm
(3.2 in)

Description

Overview
Discover the MT 1073-060 electrospindles that HSD designs and manufactures for high-speed CNC machining of wood and composite materials. The MT 1073 series offers compact dimensions, ER25 tool interface and options for shaft-driven or electric cooling to match different production environments.

Materials / Application tags
  • Wood
  • Composite


Product variant
MT 1073 - 1.5 kW

Technical sheet (table)
Model: MT 1073 - 1.5 kW
Body diameter [mm]: □ 82.5x92.5
Max speed [rpm]: 24000
Torque S1/S6 (40%) [Nm]: 0.8 / 0.95
Power S1/S6 (40%) [kW]: 1.5 / 1.8
Rated voltage [V]: 220 / 380
Tool interface: ER25
Cooling: Shaft driven fan / Electric fan
Cooling housing: 7

Caractéristiques / spécifications techniques
  • Model: MT 1073 - 1.5kW
  • Body diameter: □ 82.5x92.5 mm
  • Maximum speed: 24,000 rpm
  • Torque S1 / S6 (40%): 0.8 Nm / 0.95 Nm
  • Power S1 / S6 (40%): 1.5 kW / 1.8 kW
  • Rated voltage: 220 / 380 V
  • Tool interface: ER25
  • Cooling: shaft-driven fan / electric fan
  • Cooling housing code / size: 7
