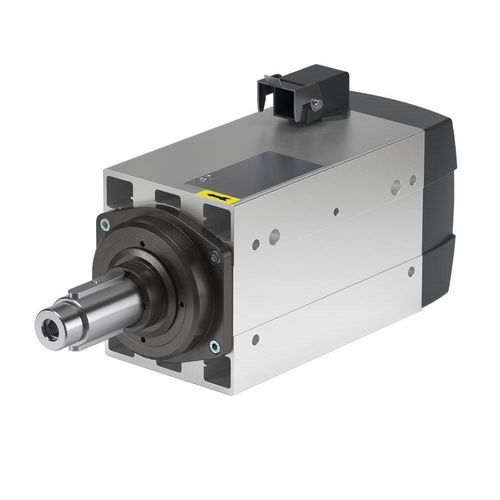

Production motor spindle AT 1090-140

machiningspindleelectric

Product overview
The AT 1090-140 electrospindle is engineered for industrial machining operations across a wide range of materials. This listing references the AT 1090 - 5 kW variant, suitable for demanding applications requiring controlled torque and low-speed performance.

Suitable materials

• Wood
• Composite

Technical data
Model: AT 1090 - 5 kW
Body diameter [mm]: 102 x 119.5
Maximum speed [rpm]: 1200
Torque S1 / S6 (40%) [Nm]: 4 / 4.8
Power S1 / S6 (40%) [kW]: 5 / 6
Rated voltage [V]: 380
Tool interface: Keyed (key-type)
Cooling: Shaft-driven fan (fan mounted on shaft)
Cooling housing: 15

Specifications

• Variant: AT 1090 - 5 kW
• Body diameter: 102 x 119.5 mm
• Maximum speed: 1200 rpm
• Torque S1 / S6 (40%): 4 / 4.8 Nm
• Power S1 / S6 (40%): 5 / 6 kW
• Rated voltage: 380 V
• Tool interface: Keyed
• Cooling: Shaft-driven fan
• Cooling housing: 15
