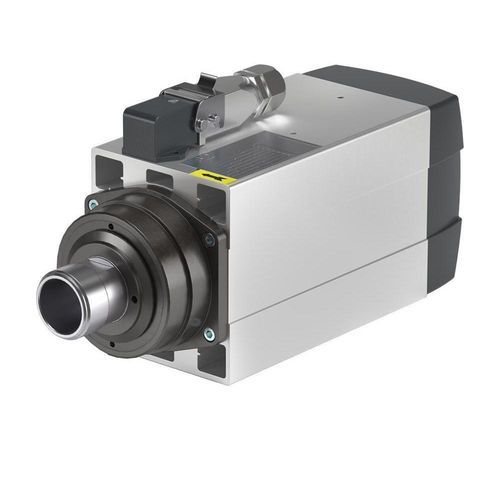

Cutting motor spindle MT 1090-100

for productionmachiningmilling

Product overview
Discover the MT 1090-100 electrospindle designed, manufactured and marketed by HSD for industrial machining operations. The MT 1090 family offers high-speed electrospindles suitable for machining a wide range of materials and metals and is available in power variants (example: MT 1090 - 4.5 kW).

Applications

• High-speed milling and routing
• Machining of wood
• Machining of composite materials
• General industrial machining of various metals and materials

Technical sheet (excerpt)
MT 1090 - 4.5 kW
Body diameter [mm]: □ 102 x 119.5
Max speed [rpm]: 24,000
Torque S1/S6 (40%) [Nm]: 2.4 / 2.9
Power S1/S6 (40%) [kW]: 4.5 / 5.4
Rated voltage [V]: 220 / 380
Tool interface: ER32
Cooling: Shaft-driven fan / Electric fan
Cooling housing: 10

Notes
Product variants are defined by power rating (example: 4.5 kW) and cooling arrangement. The spindle is presented for applications including wood and composite machining (product tags).

Features / technical specifications

• Model variant listed: MT 1090 - 4.5 kW
• Body diameter: □ 102 x 119.5 mm
• Maximum rotational speed: 24,000 rpm
• Rated torque (S1 / S6 40%): 2.4 Nm / 2.9 Nm
• Rated power (S1 / S6 40%): 4.5 kW / 5.4 kW
• Rated voltage: 220 V / 380 V
• Tool interface: ER32
• Cooling type: shaft-driven fan or electric fan
• Cooling housing size/identifier: 10
