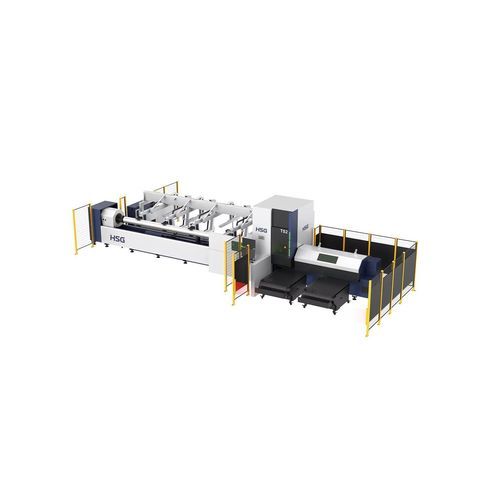

Laser cutting machine TS2

fiber laserfor steelprofile

Overview
TS2 is a high-performance tube fiber laser cutting machine designed for efficient, precise cutting of tubes and structural profiles. Standard power range: 3000W–6000W, suitable for production environments requiring high throughput and repeatability.

Fast Cutting

• Maximum linkage speed: 140 m/min; acceleration up to 1.4G; chuck rotation up to 140 r/min.
• High-speed kinematics and optimized motion control reduce cycle time and increase productivity.

Dynamic Chuck

• Two digital intelligent chucks as standard for stable clamping.
• Automatic tube-size detection and automatic adjustment of air pressure and clamping force within 2 seconds.
• Rear chuck with air and dust suction to keep workpieces and the processing area clean.

Capability of Multiple Tube Processing

• Standard configuration includes two clamps for tubes and profiles.
• Single-tube max weight: ≤ 300 kg.
• Round tube diameter range: Φ12–Φ273 mm; square tube range: □12×12–□220×220 mm.
• Supports profiles such as channel steel, angle steel and I-beams.

HSG 3D Cutting Technologies (Optional)
Optional HSG-LA4 tube bevel cutting head for complex bevels (0–45°) and 3D contouring tasks.

Dynamic Unloading

• Intelligent position adjustment based on workpiece length with one follow-up flip board and two follow-up concave wheels for stable support during cutting.

Efficient Automatic Loading (Optional)
Optional fully automatic loading system reduces loading time to as short as 25 seconds to improve processing efficiency.

Dynamic Support
Equipped with highly sensitive independent servo follow-up supports to ensure stable tube feeding and improve cutting precision.

HSG-X Intelligent Bus Operating System
Clear, bus-based interface displays cutting data in real time and centralizes core functions to simplify operation and reduce user training time.

Cutting + Drilling + Tapping (Optional)
Optional integrated solution combining laser cutting, hot-melt drilling and tapping for one-step processing to reduce operations and save labor.

Dynamic Seamline Inner Weld Detection (Optional)
Optional sensor accurately detects internal weld seams to avoid misidentification caused by external rust or polishing and to reduce scrap rates.

Technical specifications

• Models: TS2, TS2-90.
• Laser power: 3000W–6000W.
• Cutting capacity (round tube): Φ12–Φ273 mm.
• Cutting capacity (square tube): □12×12–□220×220 mm.
• Tube length range: TS2: 1 m–6.5 m; TS2-90: 1 m–9.2 m.
• Unloading length options: TS2: 3 m / 4.5 m; TS2-90: 4.5 m / 6.5 m.
• Acceleration: 1.4G; Max linkage speed: 140 m/min; Chuck rotation: up to 140 r/min.
• Max single-tube loading capacity: 300 kg.
• Options: HSG-LA4 bevel head (0–45°), automatic loading (≈25 s), 3-in-1 (cutting + drilling + tapping), seamline inner weld detection.
