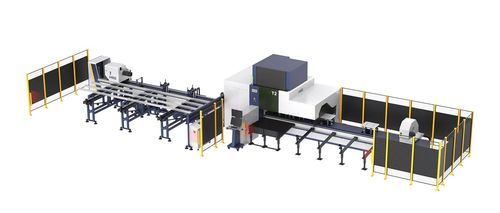

Laser cutting machine T series

rotaryfor metaltube

Overview
The T series by HSG is an automated laser tube cutting solution designed to provide reliable, efficient and cost-effective processing for metal tube laser cutting. Typical laser power: 3000W–6000W.

Designed in Japan
Developed at HSG's Global R&D Center in Kanagawa, Tokyo, the series integrates laser optics innovations and an operator-friendly interface to support production performance.

3-chuck capacity and variants
The T series uses a three-chuck design for increased load capacity and short-tail cutting. Available variants: T2 (Φ20–240 mm) and T3 (Φ40–350 mm), covering a broad range of medium to larger tubes.

Full-length loading and unloading
Hollow chucks allow through-passage of full-length tubes for automated loading and unloading. Automatic processing lengths can reach up to 6 m.

Zero-tail cutting
Forward/back movement of the chuck automatically adjusts tube position to achieve zero leftover, maximizing material utilization and reducing raw material costs.

Independent follow-up supports
Load bed (7 m) and unload bed (6 m) are equipped with four independent servo follow-up supports each, providing robust support during rotary cutting for improved precision and stability.

Photoelectric loading detection
Advanced photoelectric detection identifies the size, shape and position of each tube, enabling precise chuck clamping and real-time adjustment and feedback for stable, automated processing.

Front and rear chuck structure
Durable double-front and single-rear chuck arrangement provides comprehensive clamping and support, enhancing load capacity and cutting accuracy.

HSG-X10000 cutting system
Equipped with the HSG-X10000 bus cutting system, the solution includes multiple auxiliary functions tailored to tube applications and a user-friendly interface to improve production efficiency and processing quality.

Characteristics / technical specifications

• T series (general): Laser power 3000W–6000W; supports round and square tubes; 3-chuck design; loading/unloading up to 6 m; hollow chucks for tube passage; photoelectric detection; independent servo follow-up supports.
• T2: Power 3–6 kW; round tube range Φ20–240 mm; square tube capacity 20×20 mm – 240×240 mm; single tube max weight 300 kg; chuck speed 100 rpm; max linking speed 100 m/min; max acceleration 1.0 G.
• T3: Power 3–6 kW; round tube range Φ40–350 mm; square tube capacity 40×40 mm – 350×350 mm; single tube max weight 600 kg; chuck speed 80 rpm; max linking speed 80 m/min; max acceleration 0.8 G.
