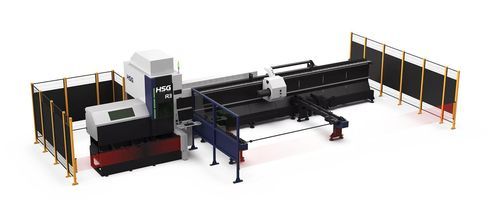

Laser cutting machine R3

for metalprofiletube

Overview
The R3 is a laser cutting machine designed for processing medium-size tubes and profiles. It covers laser power ranges from 3000W to 20000W and supports cutting of round and square tubes as well as open profiles.

Main functions

• Full-travel chucks: enable machining across the full clamping range Ø40 mm to Ø360 mm without retooling.
• Rapid open-profile processing: equipped with standard profile clamps for cutting angle, channel and H profiles.
• Automatic loading and unloading: automation reduces setup times, improves operational safety and lowers labour costs.
• Robust tube-following support system: provides full support for heavy tube processing and enhances accuracy.
• HSG Intelligent Bus Operating System: comprehensive application support, professional cutting-process database and simplified workflows.

Options and variants

• Optional tube processing lengths: 6.5 m or 12 m.
• Optional single-tube loading capacity: 600 kg or 1000 kg (depending on configuration).
• Multiple models/variants available to meet diverse processing requirements.

Operational benefits

• Wide clamping flexibility (Ø40–Ø360 mm / □40×40–□360×360 mm) without retooling.
• Modular design and configurable options for different gauges and load capacities.
• Automated loading/unloading for productivity gains and improved safety.

Technical features / specifications

• Main models and parameters: R3R – Laser source power: 3000W–20000W; X/Y positioning accuracy: ±0.03mm/m; Round tube diameter: Ø40–Ø360mm; Square tube size: □40×40–□360×360mm; Max single-tube loading weight ≈ 600kg.
• Variant model and parameters: R3R-120 – Laser source power: 3000W–20000W; X/Y positioning accuracy: ±0.05mm/m; Round tube diameter: Ø40–Ø360mm; Square tube size: □40×40–□360×360mm; Max single-tube loading weight: 1200kg.
