Fiber laser cutting machine T2for metaltubewith programming software
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser
- Material
- for metal
- Product handled
- tube
- Control type
- with programming software
- Workpiece loading
- with automatic loader
- Other characteristics
- automatic, precision, two spindle, three spindle
- Tube diameter
Max.: 240 mm
(9 in)Min.: 20 mm
(1 in)- Laser power
Max.: 6,000 W
Min.: 3,000 W
- Repeatability
0.03 mm
(0.0012 in)- Minimum width
Max.: 240 mm
(9 in)Min.: 20 mm
(1 in)- Load capacity
300 kg
(661.4 lb)
Description
Product

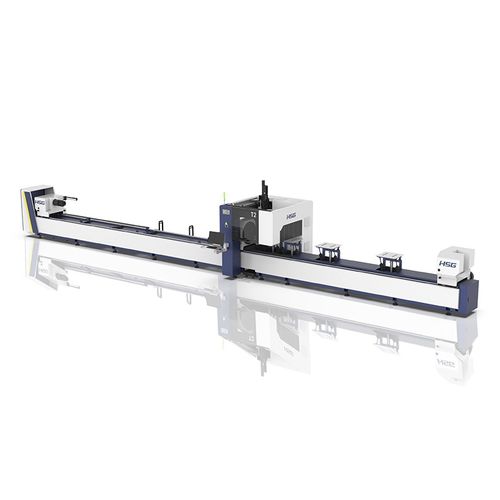

Three-chuck tube fiber laser cutting machine T2 for precision cutting of round and rectangular tubes. Power range: 3000W–6000W.
Independent Servo Follow-up Support
Both loading and unloading positions are fitted with high-sensitivity, independent servo follow-up supports to maintain stable tube feeding and improve cutting accuracy.
Fully Portable Three Chucks
Intelligent Bus Operating System

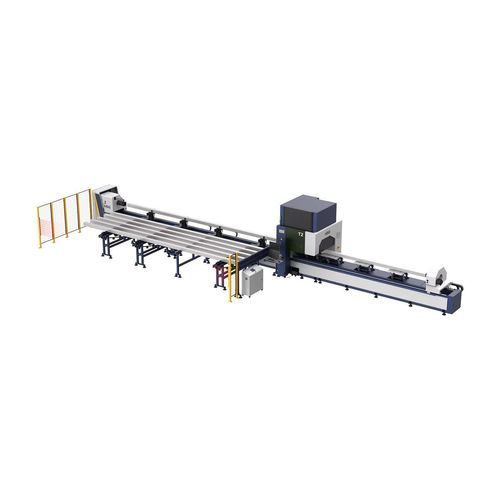

Automatic Loading (Optional)
Optional multifunctional loading support can automate feeding of round tubes, rectangular tubes and section steel profiles, increasing loading speed and overall handling efficiency.
Specifications
Three-chuck tube fiber laser cutting machine T2 for precision cutting of round and rectangular tubes. Power range: 3000W–6000W.
Independent Servo Follow-up Support
Both loading and unloading positions are fitted with high-sensitivity, independent servo follow-up supports to maintain stable tube feeding and improve cutting accuracy.
Fully Portable Three Chucks
- Fully portable three-chuck structure for convenient short-tail cutting.
- Configuration with two front chucks and one rear chuck to increase loading capacity.
- C3 hollow chuck enables blanking and unloading of complete tubes.
- Standard 240mm rectangular-round chucks enhance clamping capability for square and rectangular tubes.
Intelligent Bus Operating System
- Multiple auxiliary functions to meet diverse tube processing requirements.
- T2 series includes professional nesting software for efficient production scheduling and quotation calculation.
Automatic Loading (Optional)
Optional multifunctional loading support can automate feeding of round tubes, rectangular tubes and section steel profiles, increasing loading speed and overall handling efficiency.
Specifications
- Model: T2
- Power: 3000W–6000W
- X/Y-axis Positioning Accuracy: ±0.03mm/m
- Cutting Capacity (Round Tube): Ø20–Ø240mm
- Cutting Capacity (Square/Rectangular Tube): □20×20–□240×240mm
- Max Weight per Single Tube: 300kg
