Laser cutting machine R1

for metaltubewith control software

Overview

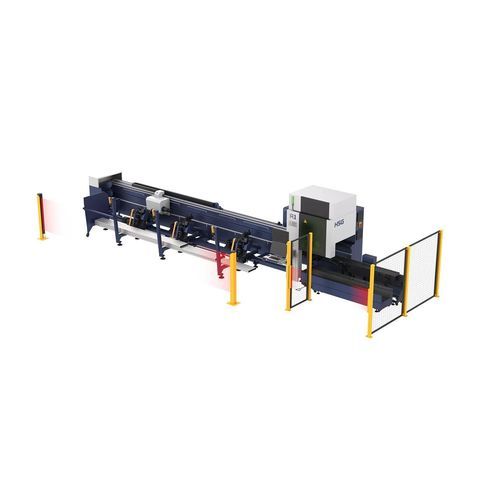

• R1 is a high-speed tiny tube laser cutting machine designed for fast, high-precision cutting of small-diameter round and square tubes.
• Laser power range: 1500W–6000W.

Key capabilities

• Minimum round tube diameter: 8 mm.
• Minimum square tube edge length: 8 mm.
• Chuck feed speed: 150 m/min.
• Chuck rotation speed: 150 r/min.
• Chuck acceleration: 1.5 G.
• Engineered to increase production throughput and reduce lead times.

Efficient multi‑mode loading

• Compatible with automatic material racks to achieve material loading in ~20 s.
• Automatic racks support tubes Ø20–Ø120 mm and lengths 4.0–6.5 m.
• Automatic rack also supports a semi-automatic one-by-one loading mode.

Chuck jumping for short tailings

• Standard cylinder-based chuck jumping shortens large-amplitude tail lengths by repositioning the chuck.
• Jumping mode enables high‑precision cutting of long tubes via controlled chuck displacement.
• Optional servo chuck jumping is available for more accurate and efficient jumps.

Follow-up support for high precision

• The machine bed includes a highly sensitive, independent servo follow-up support to provide sufficient support force during rotational cutting and to maintain cutting accuracy.

Intelligent bus operating system

• Includes auxiliary functions to meet diverse tube processing requirements.
• Equipped with professional nesting software for efficient production progress management and price calculation.

Technical parameters (summary)
Model | Power | X/Y-axis Positioning Accuracy | Cutting Capacity (round) | Cutting Capacity (square) | Approx. Weight per Tube
R1 | 1500–6000W | ±0.05 mm/m | Ø8–Ø120 mm | 8×8–120×120 mm | ≈80 kg
R1R | 1500–6000W | ±0.05 mm/m | Ø8–Ø120 mm | 8×8–120×120 mm | ≈80 kg

Notes

• Appearance, technical parameters and function descriptions are based on internal laboratory data; actual results depend on the specific machine and test conditions.

Features / technical specifications

• Model: R1 (variant: R1R)
• Laser power: 1500–6000 W
• X/Y-axis positioning accuracy: ±0.05 mm/m
• Round tube capacity: Ø8–Ø120 mm
• Square tube capacity: 8×8–120×120 mm
• Approx. single-tube loading weight: ≈80 kg
• Minimum round pipe diameter: 8 mm
• Minimum square pipe edge length: 8 mm
• Chuck feed speed: 150 m/min
• Chuck rotation speed: 150 r/min
• Chuck acceleration: 1.5 G
• Automatic material rack capacity: Ø20–Ø120 mm, length 4.0–6.5 m; automatic loading time ~20 s; semi-automatic one-by-one loading supported
• Key features: cylinder chuck jumping for short tailings, optional servo chuck jumping, independent servo follow-up support, professional nesting software (intelligent bus OS)
