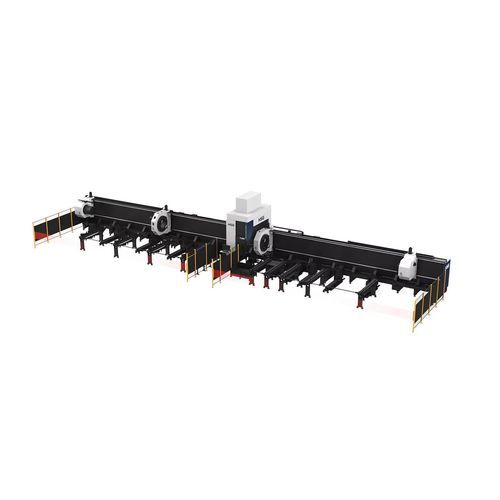

Fiber laser cutting machine TL660

for metalprofiletube

Product Overview
HSG Laser released the TL four-chuck heavy-duty tube fiber laser cutting machine, engineered for stable cutting of heavy, large and long tubes. Power range: 6000W–20000W.

Four Chucks Structure

• Heavy-duty pneumatic chucks for stable clamping
• Maximum clamping diameter: 660 mm (round tube)
• Single tube bearing capacity: 3000 kg

Automatic Loading and Unloading System
The automatic loading/unloading system handles heavy tubes without machine shutdown, reducing unproductive time and lowering handling risks.

HSG-X Bus Control System
HSG-X is a bus-based control platform developed by HSG Laser to simplify operation and improve efficiency.

• 21.5-inch touch screen with concise interface
• Real-time monitoring of core components with early alarms
• Optional tube deviation detection
• One-click generation of processing reports

Tube Splicing Technology
The control provides 50+ tube splicing patterns to facilitate downstream welding and assembly, including common industrial joint types.

• Male/female splicing for square tube ends
• 90° arc splicing
• Round-tube T-splicing
• Splicing for cut-through holes
• 45° splicing for hexagons
• Splicing for angle iron and channel steel

Cut with Short Tailings
The four-chuck configuration supports reverse cutting to produce short tailings and improve material utilization.

Power-off Cutting Restart Technology
Imported servo motors with absolute encoders enable power-off cutting restart so cutting can resume after power interruption without loss of position.

Technical Parameters (as presented)

• Model: TL660
• Power: 6000W–20000W
• X/Y-axis positioning accuracy: ±0.1 mm/m
• Cutting capacity (round tube): Φ80–Φ660 mm
• Cutting capacity (square tube): 80×80–450×450 mm
• Single tube bearing capacity: 3000 kg
