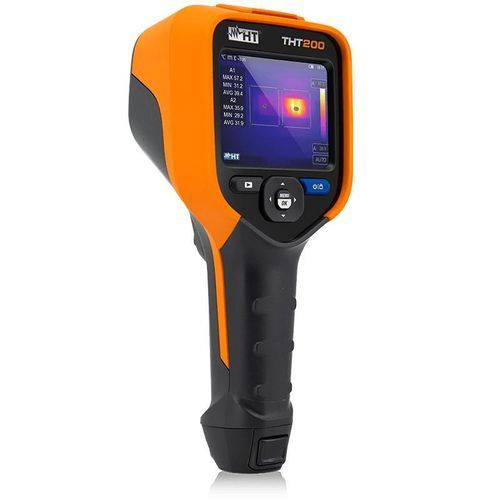

Plumbing camera THT200

mechanicalthermal imaginginfrared

Product Overview
The THT200 is a professional thermal camera equipped with a high-resolution 160 x 120px IR sensor, ideal for use in electrical, mechanical, plumbing, ventilation, and refrigeration systems. It features a temperature range of -20°C to 650°C and a field of view of 20.7° x 15.6°, producing high-quality thermal images and videos with AutoFusion and Picture in Picture functions. The camera includes a modern icon-based interface and a high-brightness capacitive touchscreen display. It also offers Wi-Fi connectivity and compatibility with the HT Pro Camera app.

Functions & Specifications

• IR Resolution: 160 x 120 pxl
• Temperature range: -20° ÷ 650°C
• Image frequency: 50Hz
• Thermal sensitivity / NETD: <0.05°C @ 30°C / 50mK
• Field of view (FOV): 20.7° x 15.6°
• Focal length: f 1.0
• Lens: 7.5mm
• IFOV: 2.26mrad
• Focus mode: Manual Focus
• Built-in camera: 2 MP, focus free
• Picture in Picture function
• AutoFusion image enhancement
• Uncertainty about the measure: ±2°C (±3.6°F) or ±2% of reading
• Digital zoom: 1x ÷ 32x
• Measurement tools (in live mode): none, center spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode
• Area measurement information: max, min, AVG
• IR Video recording
• Measurement corrections: emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation
• Color Palettes: iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm
• Internal memory: 3.4 GB
• On-camera report building: text annotation
• Communication modes: USB type C, Wi-fi, SD card
• Display: touch screen
• Battery operation time: 4 hours
• Size (LxWxH) (mm): 240 x 101 x 110mm

Guidelines

• CE MARK
• EMC 2014/30/EU
• EMC: IEC/EN61326
• IEC/EN61010-1

Standard Accessories

• Calibration report
• User Manual
• USB cable for PC connection
• Li-on battery for medium format infrared cameras (THTBATM)
• SD card 32GB

Optional Accessories

• THTBATKITM: Additional battery THTBATM + charging base THTCBM (for THT100, THT200, THT300, THT400 cameras)
• THTCASEM: Rigid carrying case (for THT100, THT200, THT300, THT400 cameras)
