Digital camera THT500H

industrialthermal imagingmeasuring

Product Overview

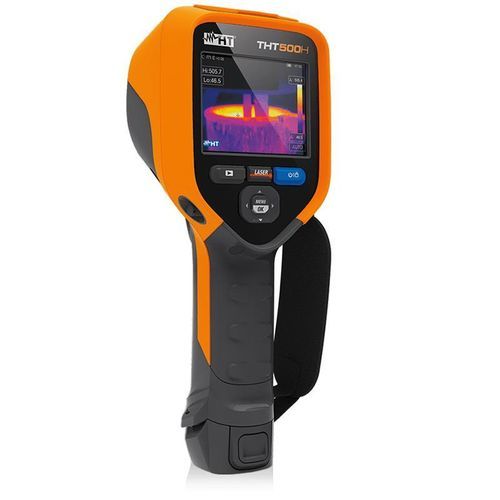

The THT500H is a professional thermal camera equipped with a high-resolution 160x120px IR sensor and a specific measuring range for high temperatures from -20°C to 1200°C, making it suitable for industrial and manufacturing use. It features a 17.3° x 13° field of view, producing high-resolution thermal images and videos, and supports AutoFusion and Picture in Picture functions. It includes an ergonomic strap and an integrated laser distance meter for measuring the distance to the subject. The camera has a modern internal icon structure and a high-brightness capacitive touch-screen display. With Wi-Fi connectivity, thermograms can be downloaded to your mobile device, and the HT Pro Camera app allows for quick PDF report creation and sharing.

Functions and Specifications

• IR Resolution: 160x120 pxl
• Temperature range: -20° ÷ 1200°C
• Image frequency: 50Hz
• Thermal sensitivity / NETD: <0.05°C @ 30°C / 50mK
• Field of view (FOV): 17.3° x 13°
• Focal length: f 1.0
• Lens: 9mm
• IFOV: 1.89mrad
• Focus mode: manual focus
• Picture in Picture function: Yes
• AutoFusion image enhancement: Yes
• Digital zoom: 1x ÷ 32x
• Measurement uncertainty: ±2°C (±3.6°F) or ±2% of reading
• Measurement tools (live mode): none, center spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode
• Area measurement information: max, min, AVG
• IR Video recording: Yes
• Measurement corrections: emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation
• Color Palettes: iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm
• Span modes: Automatic / Manual / Histogram
• Laser pointer: Yes
• Laser distance meter: Yes
• Built-in LED light: Yes
• Internal memory: 3.4 GB
• On-camera report building: text notes, voice notes
• Communication modes: micro USB, Wi-Fi, micro SD, micro HDMI
• Display: touch screen
• Battery operation time: 4 hours
• Size (LxWxH) (mm): 240 x 101 x 110mm

Guidelines

• CE MARK
• EMC 2014/30/EU
• EMC: IEC/EN61326
• IEC/EN61010-1

Standard Accessories

• Calibration report
• Quick Guide and Downloadable Manual
• Headset with microphone
• Micro USB cable for PC connection
• HDMI video cable
• Battery charging base
• Rigid carrying case
• micro SD card 16GB
• THTBATL (Li-on battery for large format thermal imaging cameras)
• AC/DC Adapter 100-240V/5V + Universal Plugs
• Micro SD Card Adapter

Optional Accessories

• THTBATL (Li-on battery for large format thermal imaging cameras)
