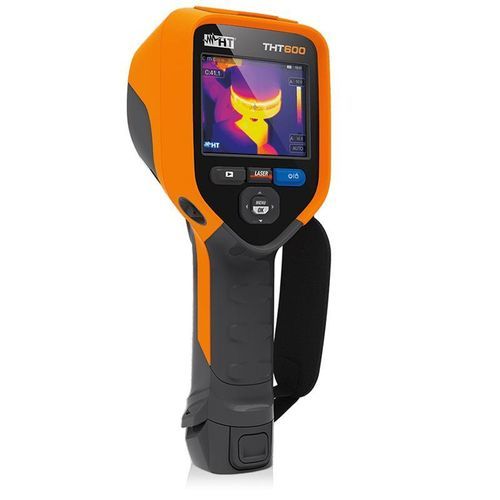

Digital camera THT600

industrialthermal imaginginfrared

Product Overview
The THT600 is a professional thermal imaging camera equipped with a high-resolution 384x288px IR sensor, suitable for industrial and construction use, as well as human temperature screening. It features two specific measurement ranges: -20°C to 650°C and 32°C to 42°C, producing high-resolution thermal images and videos. The device includes an icon-based interface on a high-brightness capacitive touchscreen.

Main Functions

• IR Resolution: 384x288 pxl
• Temperature Range: -20° ÷ 650°C
• Image Frequency: 50Hz
• Thermal Sensitivity / NETD: <0.05°C @ 30°C / 50mK
• Field of View (FOV): 17° x 12.7°
• Focal Length: f 1.0
• Lens: 22mm
• IFOV: 0.77mrad
• Focus Mode: Manual
• Built-in Camera: 2 MP, fixed focus
• Picture in Picture Function
• AutoFusion Image Enhancement
• Measurement Uncertainty: ±2°C (±3.6°F) or ±2% of reading
• Digital Zoom: 1x ÷ 32x
• Measurement Tools: Center spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode
• Area Measurement Info: Max, Min, AVG
• IR Video Recording
• Measurement Corrections: Emissivity, reflected temperature, ambient temperature, atmospheric humidity, infrared compensation, distance compensation
• Color Palettes: Iron, rainbow, white hot, black hot, brown hot, blue/red, hot/cold, feather, above max alarm, below min alarm, interval alarm
• Span Modes: Automatic / Manual / Histogram
• Laser Pointer
• Laser Distance Meter
• Built-in LED Light
• Internal Memory: 3.4 GB
• On-camera Report Building: Text notes, voice notes
• Communication Modes: Micro USB, Wi-Fi, micro SD, micro HDMI
• Display: Touchscreen
• Battery Operation Time: 4 hours
• Size (LxWxH): 240 x 101 x 110 mm

Guidelines

• CE MARK
• EMC 2014/30/EU
• EMC: IEC/EN61326
• IEC/EN61010-1
