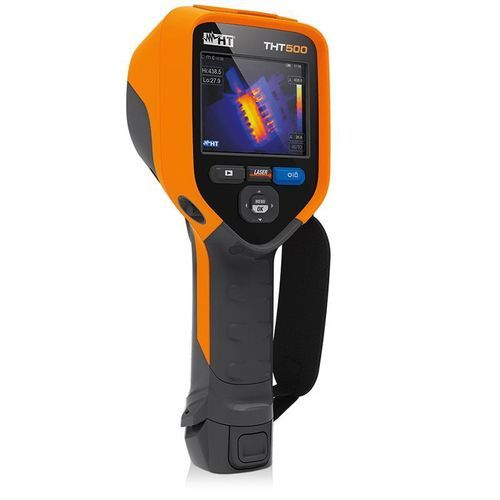

Digital camera THT500

medicalplumbingmechanical

Product Overview
The THT500 is a new professional thermal camera equipped with a high-resolution IR sensor of 160 x 120 pixels, making it suitable for use in electrical, mechanical, plumbing, ventilation, refrigeration systems, and power distribution. It features a measurement range of -20°C to 650°C and a field of view of 17.3° x 13°, producing high-resolution thermal images and videos, while allowing AutoFusion and Picture in Picture functions. It also includes an ergonomic strap and an integrated laser rangefinder, enabling distance measurement to the analyzed subject. The thermal camera is equipped with a modern internal icon structure and a high-brightness capacitive touchscreen. Thanks to Wi-Fi connectivity, thermograms can be downloaded to your mobile device, and with the new and convenient HT Pro Camera app, you can create PDF reports and share them quickly.

Main Features

• IR Resolution: 160x120 pxl
• Temperature Range: -20° ÷ 650°C
• Image Frequency: 50Hz
• Thermal Sensitivity / NETD: <0.05°C @ 30°C / 50mK
• Field of View (FOV): 17.3° x 13°
• Focal Length: f 1.0
• Lens: 9mm
• IFOV: 1.89mrad
• IR Optics Focus: Manual
• Picture in Picture Function: ●
• AutoFusion Function: ●
• Measurement Uncertainty: ±2°C (±3.6°F) or ±2% of reading
• Digital Zoom: 1x ÷ 32x
• Measurement Tools (real-time): none, center spot, 3 spots, hot/cold spots, 3 areas, vertical and horizontal lines, screening mode
• Measurement Area Information: max, min, AVG
• IR Video Recording: ●
• Measurement Correction: emissivity, reflected temperature, ambient temperature, atmospheric humidity, temperature compensation, distance compensation
• Color Palettes: iron, rainbow, warm white, warm black, medical, arctic, hot iron, fulgurite
• Span Mode: Automatic / Manual / Histogram
• Laser Pointer: ●
• Laser Rangefinder: ●
• Integrated LED Light: ●
• Internal Memory Capacity: 3.4 GB
• Thermogram Annotations: text notes, voice notes
• Communication Interface: micro USB, Wi-Fi, micro SD, micro HDMI
• Display: touchscreen
• Battery Life: 4 hours
• Dimensions (LxWxH) (mm): 240 x 101 x 110mm

Standards

• CE MARK
• EMC 2014/30/EU
• EMC: IEC/EN61326
• IEC/EN61010-1

Included Accessories

• Calibration Certificate
• Quick Guide and downloadable manual
• Headset with microphone
• Micro USB cable for PC connection
• HDMI Video Cable
• Battery Charging Base
• Hard Carrying Case
• 16GB micro SD card
• Li-on Battery for large format thermal cameras (THTBATL)
• AC/DC Adapter 100-240V/5V + Universal Plugs
• Micro SD card adapter

Optional Accessories

• Li-on Battery for large format thermal cameras (THTBATL)

Characteristics / Technical Specifications

• Metel Code: HN050000
• IR Sensor: 160 x 120 pxl
• Measurement Range: -20 °C to 650 °C
• Field of View: 17.3° x 13°
• Image Frequency: 50Hz
• Thermal Sensitivity: <0.05°C @ 30°C / 50mK
• Focal Length: f 1.0
• Lens: 9mm
• IFOV: 1.89mrad
• Focus: Manual
• Digital Zoom: 1x ÷ 32x
• IR Video Recording
• Internal Memory: 3.4 GB
• High Brightness Capacitive Touchscreen
• Wi-Fi Connectivity
• Dimensions: 240 x 101 x 110 mm
• Battery Life: 4 hours
