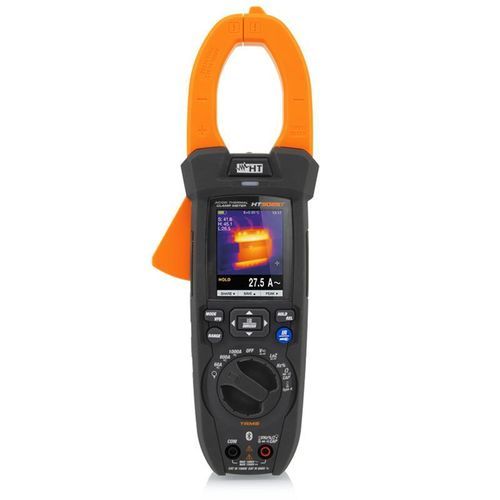

Digital clamp meter HT9025Tportable1500 V1000 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 1500 V
- Max current
- 1000 A
- Safety rating
- cat III, cat IV
- Other characteristics
- AC/DC, TRMS, Bluetooth
- Max DC voltage
1,000 V
- Max AC voltage
1,000 V
- Max DC current
1,000 A
- Max AC current
1,000 A
- Length
280 mm
(11.02 in)- Width
100 mm
(3.94 in)- Height
50 mm
(1.97 in)- Weight
505 g
(17.81 oz)
Description
Product Overview
HT9025T has been designed to measure AC/DC current up to 1000A, DC voltage up to 1500V and AC voltage up to 1000V in TRMS reaching CAT IV 600V and CAT III 1000V in compliance with safety standard IEC/EN61010-1. The clamp is provided with a display with 6000 measuring spots with backlight and bargraph to allow for a simple reading even in poorly lit environments. HT9025T also measures Resistance, Frequency, Capacitance and Temperature with K-type probe and infrared temperature with built-in thermal camera 120 x 120 pxl. The Bluetooth connection allows for the transfer of the saved snapshots by means of the dedicated App HTMercury.
Functions
Guidelines
Technical Specifications / Features
HT9025T has been designed to measure AC/DC current up to 1000A, DC voltage up to 1500V and AC voltage up to 1000V in TRMS reaching CAT IV 600V and CAT III 1000V in compliance with safety standard IEC/EN61010-1. The clamp is provided with a display with 6000 measuring spots with backlight and bargraph to allow for a simple reading even in poorly lit environments. HT9025T also measures Resistance, Frequency, Capacitance and Temperature with K-type probe and infrared temperature with built-in thermal camera 120 x 120 pxl. The Bluetooth connection allows for the transfer of the saved snapshots by means of the dedicated App HTMercury.
Functions
- TRMS
- Current measuring range: 1000A
- AC/DC current: AC+DC
- AC/DC voltage: 1000VAC/1500VDC
- IR Resolution: 120 x 120 pxl
- Leakage current with optional clamp meter: External pliers
- Frequency
- Resistance and continuity test with buzzer
- Capacity
- Diode test
- Duty Cycle (%)
- Temperature with K-type probe
- AC/DC current
- Inrush current measurement (INRUSH)
- Measurement category
- Maximum diameter for clamp: 40mm
- Measuring counts: 6000
- Backlight
- Bargraph
- Autorange
- Auto power off
- Detection of AC voltage without contact
- Data HOLD function
- MIN/MAX function
- Relative measurement
- Colour LCD display
- Datalogger and Graph
- Memory for data saving
- Power supply: LI-ION battery
- Size (LxWxH) (mm): 280x100x50
- Weight in grams (batteries included): 505
Guidelines
- EMC 2014/30/EU
- EMC: IEC/EN61326
- IEC/EN61010-1
Technical Specifications / Features
- AC/DC TRMS 1000A clamp meter with integrated thermal imager 120 x 120 pxl
- Display with 6000 measuring spots, backlight and bargraph
- Measures resistance, frequency, capacitance, temperature (K-type probe), and infrared temperature
- Bluetooth connectivity for snapshot transfer via HTMercury App
- Measurement categories: CAT IV 600V, CAT III 1000V
- Power supply: LI-ION battery
- Dimensions: 280x100x50 mm
- Weight: 505 g (including batteries)
